SKU: SCHB20-RHP

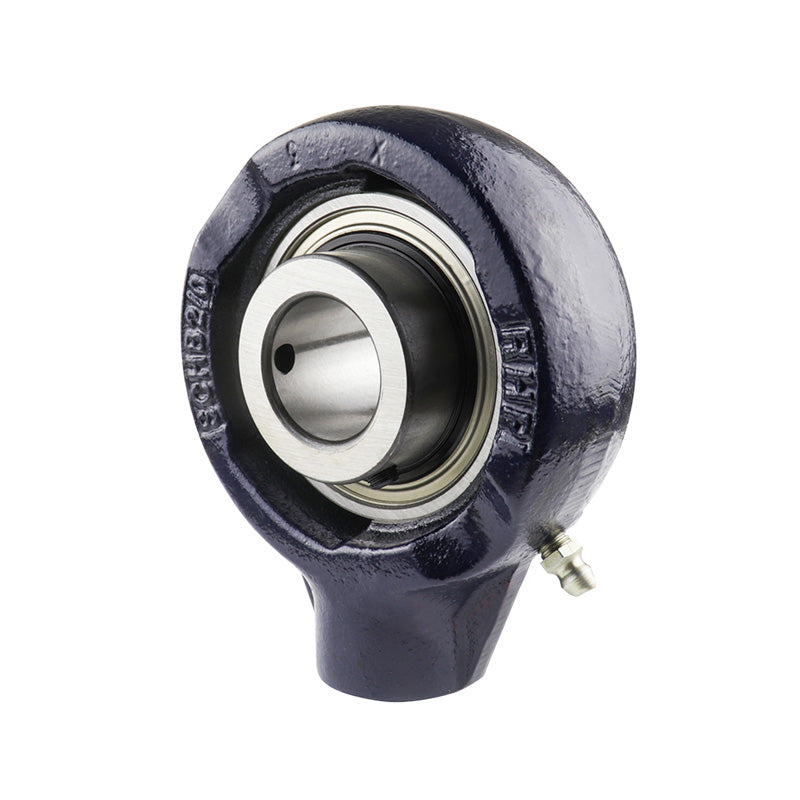

RHP SCHB20 BSP Thread Cast Iron Hanger Bearing Unit and 20mm Bore Insert 67mm Outside Diameter
RHP SCHB20 BSP Thread Cast Iron Hanger Bearing Unit and 20mm Bore Insert 67mm Outside Diameter
Regular price
CHF 62.00
ex VAT
Regular price
Sale price
CHF 62.00
ex VAT
In stock
Price Break
10+
CHF 49.36
20+
CHF 46.59
30+
CHF 46.03
40+
CHF 45.48
50+
CHF 44.92
75+
CHF 44.37
100+
CHF 41.60
200+
CHF 41.04
250+
CHF 40.49
500+
CHF 39.93
1000+
CHF 38.82
Share this product
Description
Description
|
RHP SCHB Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 67mm
- Style:
- SCHB
Technical
Technical
| Bore | 20mm |
|---|---|
| G1 | 19mm |
| L | 67mm |
| H | 91.6mm |
| H1 | 57.2mm |
| Threads | 1/2 BSP |
| A | 34mm |
| A1 | 18.26mm |
| B | 30.96mm |
| s | 12.75mm |
| d1 | 28.5mm |
| Dynamic load Cr | 12800 N |
| Static load Cor | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1020-20G+insonly">1020-20G Click Here</a> |
| Casting group | 0 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
