• RHP SCHB3 BSP Thread Cast Iron Hanger Bearing Unit and 3 inch Bore Insert 174.5mm Outside Diameter
1 1

SKU: SCHB3-RHP

RHP SCHB3 BSP Thread Cast Iron Hanger Bearing Unit and 3 inch Bore Insert 174.5mm Outside Diameter

RHP SCHB3 BSP Thread Cast Iron Hanger Bearing Unit and 3 inch Bore Insert 174.5mm Outside Diameter
CHF 328.96 ex VAT
CHF 328.96 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 292.77
19+ CHF 276.33
29+ CHF 273.04
39+ CHF 269.75
49+ CHF 266.46
74+ CHF 263.17
99+ CHF 246.72
199+ CHF 243.43
249+ CHF 240.14
499+ CHF 236.85
999+ CHF 230.27
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

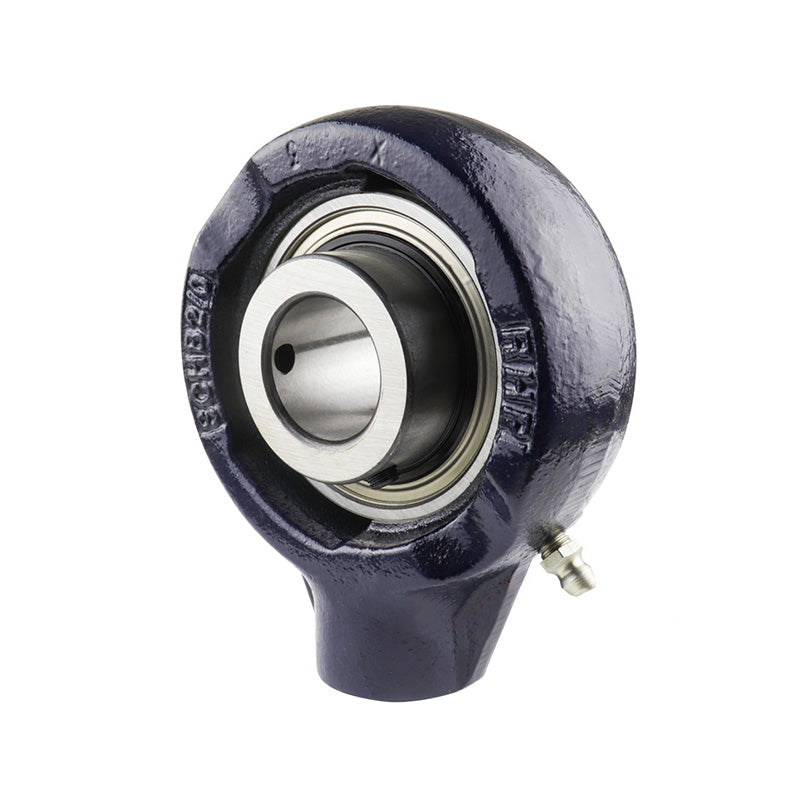

RHP SCHB Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Note: The threaded part of the hanger unit has BSP threads for this version.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
Brand / Quality:
RHP - High Quality
Inside Diameter:
76.2mm = 3 inch
Outside Diameter:
174.5mm
Style:
SCHB
Technical
Bore 3 inch
G1 1.26 inch
L 6.87 inch
H 8.327 inch
H1 4.874 inch
Threads 1-1/2 BSP
A 2.815 inch
A1 1.626 inch
B 3.25 inch
s 1.314 inch
d1 3.878 inch
Dynamic load Cr 71500 N
Static load Cor 54500 N
Rec max speed 2150 rpm
Weight 8.1 kg
Insert <a href="advanced_search_result.php?keywords=1080-3G+insonly">1080-3G Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
