SKU: SCHB35-RHP

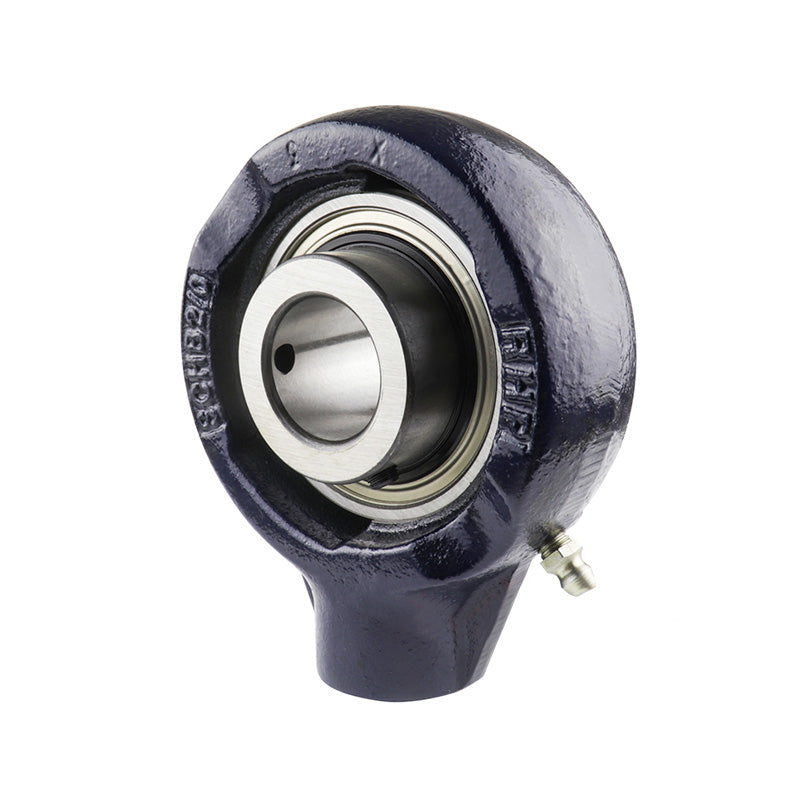

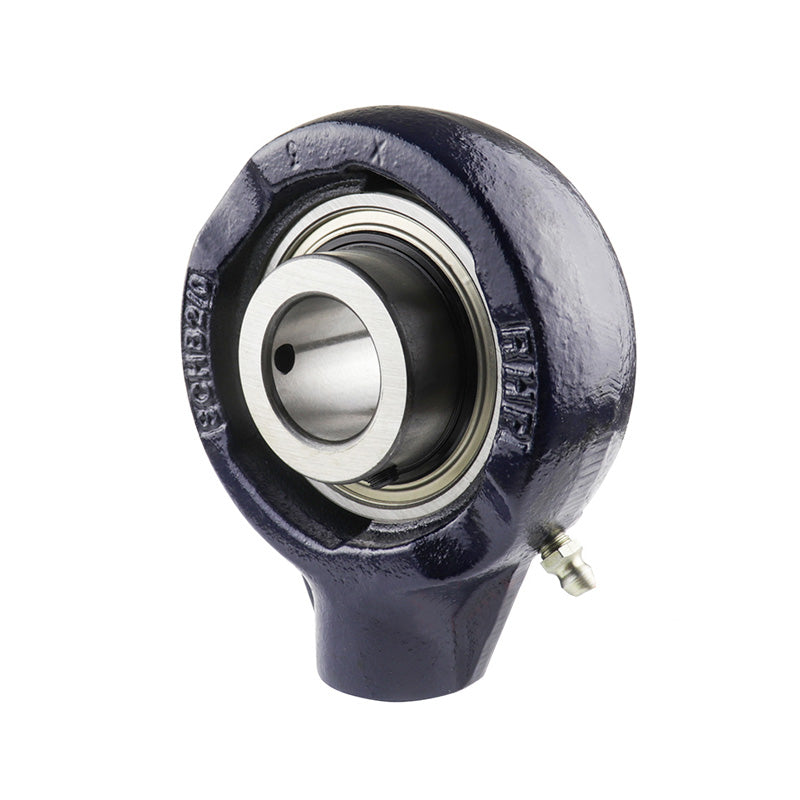

RHP SCHB35 BSP Thread Cast Iron Hanger Bearing Unit and 35mm Bore Insert 97mm Outside Diameter
RHP SCHB35 BSP Thread Cast Iron Hanger Bearing Unit and 35mm Bore Insert 97mm Outside Diameter
Regular price
CHF 85.00
ex VAT
Regular price
Sale price
CHF 85.00
ex VAT
In stock
Price Break
10+
CHF 67.55
20+
CHF 63.76
30+
CHF 63.00
40+
CHF 62.24
50+
CHF 61.48
75+
CHF 60.72
100+
CHF 56.92
200+
CHF 56.17
250+
CHF 55.41
500+
CHF 54.65
1000+
CHF 53.13
Share this product
Description
Description
|
RHP SCHB Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 97mm
- Style:
- SCHB
Technical
Technical
| Bore | 35mm |
|---|---|
| G1 | 19mm |
| L | 97mm |
| H | 119mm |
| H1 | 69.8mm |
| Threads | 3/4 BSP |
| A | 39.5mm |
| A1 | 25.4mm |
| B | 42.88mm |
| s | 17.53mm |
| d1 | 46.69mm |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-35G+insonly">1035-35G Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
