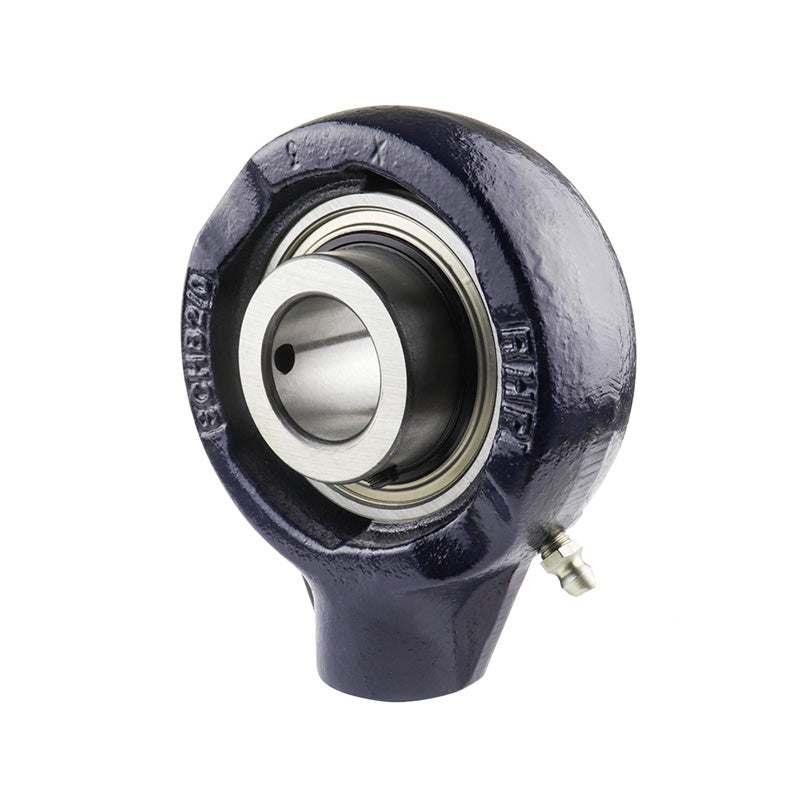

RHP SCHB60 BSP Thread Cast Iron Hanger Bearing Unit and 60mm Bore Insert 143mm Outside Diameter
RHP SCHB60 BSP Thread Cast Iron Hanger Bearing Unit and 60mm Bore Insert 143mm Outside Diameter
Regular price
CHF 181.00
ex VAT
Regular price
Sale price
CHF 181.00
ex VAT
In stock
Price Break
10+
CHF 143.76
20+
CHF 135.68
30+
CHF 134.07
40+
CHF 132.45
50+
CHF 130.84
75+
CHF 129.22
100+
CHF 121.14
200+
CHF 119.53
250+
CHF 117.91
500+
CHF 116.30
1000+
CHF 113.07
Share this product
Description
Description
|
RHP SCHB Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 143mm
- Style:
- SCHB

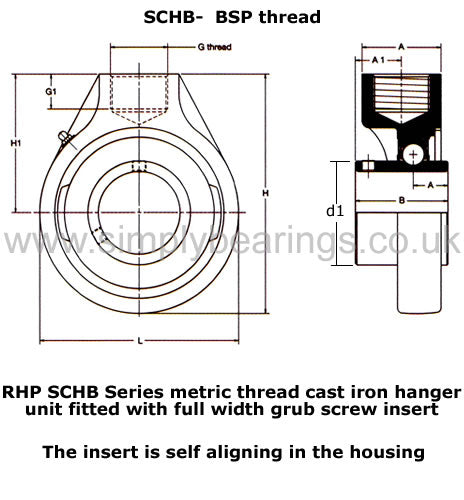

Technical
Technical
| Bore | 60mm |
|---|---|
| G1 | 29mm |
| L | 143mm |
| H | 173.5mm |
| H1 | 101.6mm |
| Threads | 1-1/4 BSP |
| A | 58.5mm |
| A1 | 30.94mm |
| B | 65.07mm |
| s | 25.45mm |
| d1 | 75.34mm |
| Dynamic load Cr | 48000 N |
| Static load Cor | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 3.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-60G+insonly">1060-60G Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
