SKU: SCHB75-RHP

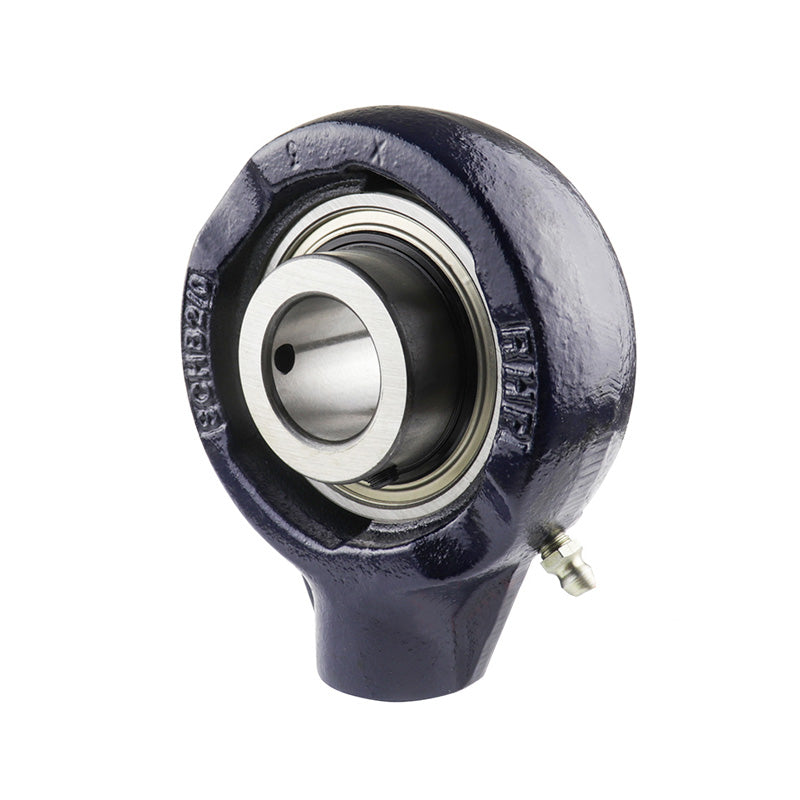

RHP SCHB75 BSP Thread Cast Iron Hanger Bearing Unit and 75mm Bore Insert 165mm Outside Diameter
RHP SCHB75 BSP Thread Cast Iron Hanger Bearing Unit and 75mm Bore Insert 165mm Outside Diameter
Regular price
CHF 265.00
ex VAT
Regular price
Sale price
CHF 265.00
ex VAT
In stock
Price Break
10+
CHF 210.97
20+
CHF 199.11
30+
CHF 196.74
40+
CHF 194.37
50+
CHF 192.00
75+
CHF 189.63
100+
CHF 177.78
200+
CHF 175.41
250+
CHF 173.04
500+
CHF 170.67
1000+
CHF 165.93
Share this product
Description
Description
|
RHP SCHB Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 165mm
- Style:
- SCHB
Technical
Technical
| Bore | 75mm |
|---|---|
| G1 | 32mm |
| L | 165mm |
| H | 200.6mm |
| H1 | 117.5mm |
| Threads | 1-1/2 BSP |
| A | 70mm |
| A1 | 34.94mm |
| B | 77.77mm |
| s | 33.37mm |
| d1 | 92mm |
| Dynamic load Cr | 66000 N |
| Static load Cor | 49500 N |
| Rec max speed | 2300 rpm |
| Weight | 6.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1075-75G+insonly">1075-75G Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
