SKU: SE210-SKF

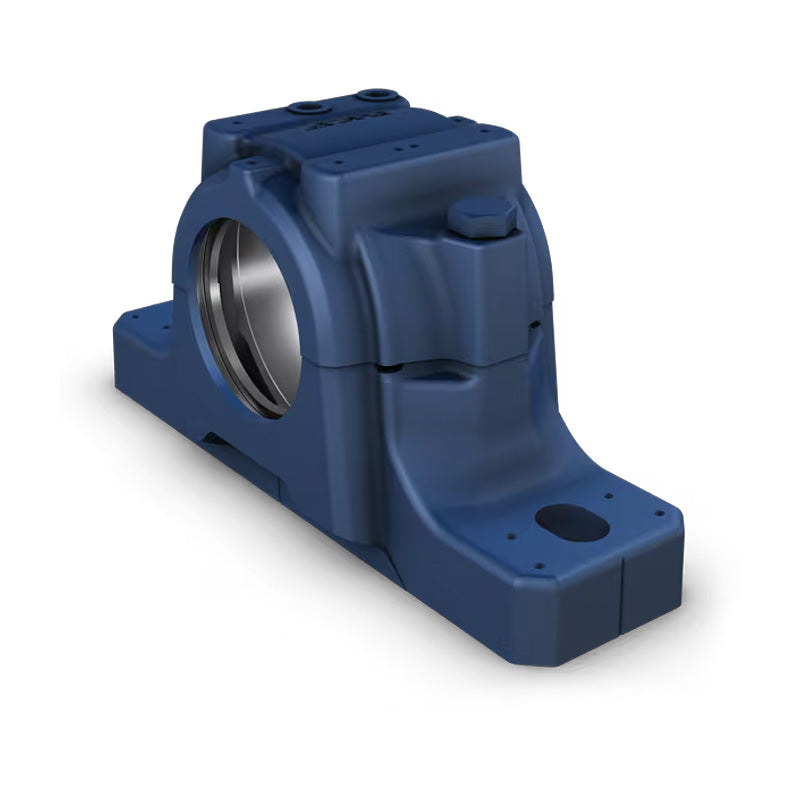

SKF SE210 Cast Iron Split Pillow Block Housing
SKF SE210 Cast Iron Split Pillow Block Housing
Regular price
CHF 94.00
ex VAT
Regular price
Sale price
CHF 94.00
ex VAT
Equivalent to: SNL210
In stock
Price Break
4+
CHF 74.84
9+
CHF 70.63
19+
CHF 69.79
29+
CHF 68.95
39+
CHF 68.11
49+
CHF 67.27
59+
CHF 63.07
69+
CHF 62.23
79+
CHF 61.38
89+
CHF 60.54
99+
CHF 58.86
Description
Description
|
SKF SNL Split Plummer Block Housings: These plummer block housings enable the full service life capability of the incorporated bearings to be used with less need for maintenance. This supports efforts of the user to further reduce maintenance costs. As the housings are very stiff, they are insensitive to uncontrolled and excessive tightening of the attachment bolts. These housings are made of grey cast iron and feature two attachment bolts. Benefits: A wide range of different seal types available, easy installation. |
Equivalent: SNL210
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 170mm
Technical
Technical
| da | 50mm |
|---|---|
| db | 60mm |
| A | 3-9/16 inch = 90mm |
| A1 | 2-3/8 inch = 60mm |
| A2 | 4 inch = 102mm |
| A3 | 6-1/2 inch = 165mm |
| H | 4-1/2 inch = 113mm |
| H1 | 2.362 inch = 60mm |
| H2 | 1 inch = 25mm |
| J Max | 6-7/8 inch = 175mm |
| J Min | 6-1/2 inch = 165mm |
| J | 6-11/16 inch = 170mm |
| L | 8-1/8 inch = 205mm |
| N | 3/4 inch = 20mm |
| N1 | 5/8 inch = 15mm |
| G | 1/2 inch = 12mm |
| Weight | 3.63 kg |
