SKU: SE211-SKF

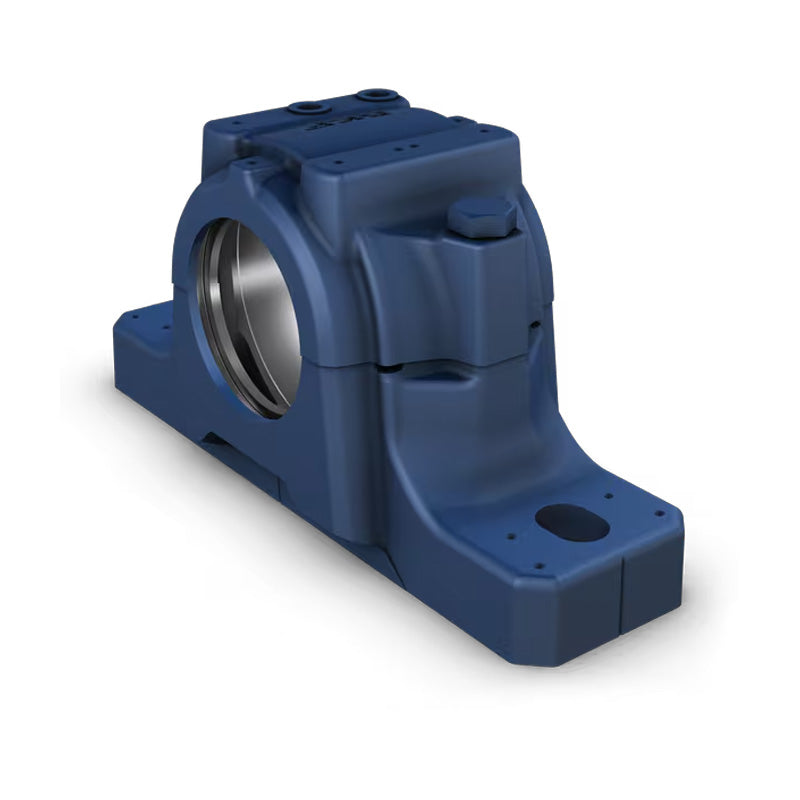

SKF SE211 Cast Iron Split Pillow Block Housing
SKF SE211 Cast Iron Split Pillow Block Housing
Regular price
CHF 119.00
ex VAT
Regular price
Sale price
CHF 119.00
ex VAT
Equivalent to: SNL211
In stock
Price Break
4+
CHF 94.61
9+
CHF 89.29
19+
CHF 88.23
29+
CHF 87.17
39+
CHF 86.10
49+
CHF 85.04
59+
CHF 79.73
69+
CHF 78.66
79+
CHF 77.60
89+
CHF 76.54
99+
CHF 74.41
Description
Description
|
SKF SNL Split Plummer Block Housings: These plummer block housings enable the full service life capability of the incorporated bearings to be used with less need for maintenance. This supports efforts of the user to further reduce maintenance costs. As the housings are very stiff, they are insensitive to uncontrolled and excessive tightening of the attachment bolts. These housings are made of grey cast iron and feature two attachment bolts. Benefits: A wide range of different seal types available, easy installation. |
Equivalent: SNL211
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 170mm
Technical
Technical
| da | 55mm |
|---|---|
| db | 65mm |
| A | 3-3/4 inch = 95mm |
| A1 | 2-3/4 inch = 70mm |
| A2 | 4-1/4 inch = 107mm |
| A3 | 6-11/16 inch = 170mm |
| H | 5 inch = 128mm |
| H1 | 2.756 inch = 70mm |
| H2 | 1-1/8 inch = 28mm |
| J Max | 8-7/16 inch = 215mm |
| J Min | 8-1/8 inch = 205mm |
| J | 8-5/16 inch = 210mm |
| L | 10-1/16 inch = 255mm |
| N | 1 inch = 24mm |
| N1 | 3/4 inch = 18mm |
| G | 5/8 inch = 16mm |
| Weight | 5.25 kg |
