SKU: SE509V-SKF

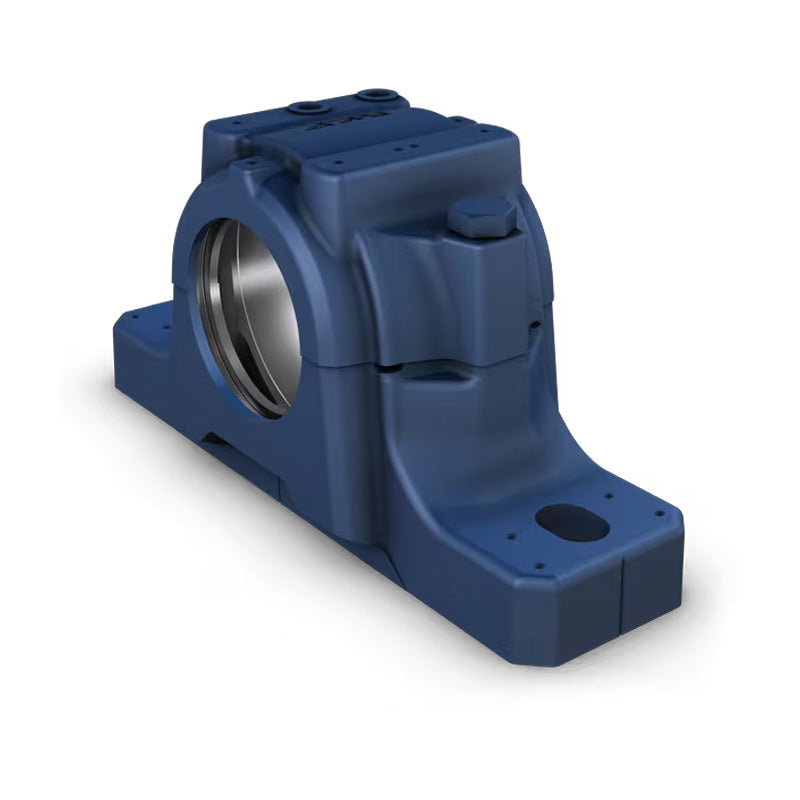

SKF SE509V Cast Iron Split Pillow Block Housing with Open Grease Escape Hole
SKF SE509V Cast Iron Split Pillow Block Housing with Open Grease Escape Hole
Regular price
CHF 91.00
ex VAT
Regular price
Sale price
CHF 91.00
ex VAT
Equivalent to: SNL509V
In stock
Price Break
4+
CHF 72.52
9+
CHF 68.45
19+
CHF 67.63
29+
CHF 66.82
39+
CHF 66.00
49+
CHF 65.19
59+
CHF 61.12
69+
CHF 60.30
79+
CHF 59.49
89+
CHF 58.67
99+
CHF 57.04
Description
Description
|
SKF SE Split Plummer Block Housings: SE plummer block housings are a new generation of the SNL plummer block housings. SE housings in series 2, 3, 5 & 6 supersede SNL housings in the 2, 3, 5, & 6 series from size 507-606 up to and including SE 515-612. These housings consist of a cap and base, and feature two holes as standard cast into the base for attachment bolts. Benefits: More robust compared to SNL housings, easy installation. |
Equivalent: SNL509V
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 169.86mm = 6.687 (6-11/16) inch
Technical
Technical
| da | 40mm |
|---|---|
| A | 3-3/8 inch = 85mm |
| A1 | 2-3/8 inch = 60mm |
| A2 | 3-13/16 inch = 97mm |
| A3 | 5-15/16 inch = 150mm |
| H | 4-5/16 inch = 109mm |
| H1 | 2.362 inch = 60mm |
| H2 | 1 inch = 25mm |
| J max | 6-7/8 inch = 175mm |
| J min | 6-1/2 inch = 165mm |
| J | 6-11/16 inch = 170mm |
| L | 8-1/8 inch = 205mm |
| N | 3/4 inch = 20mm |
| N1 | 5/8 inch = 15mm |
| G | 1/2 inch = 12mm |
| Weight | 3.38 kg |
