SKU: SE510-608-SKF

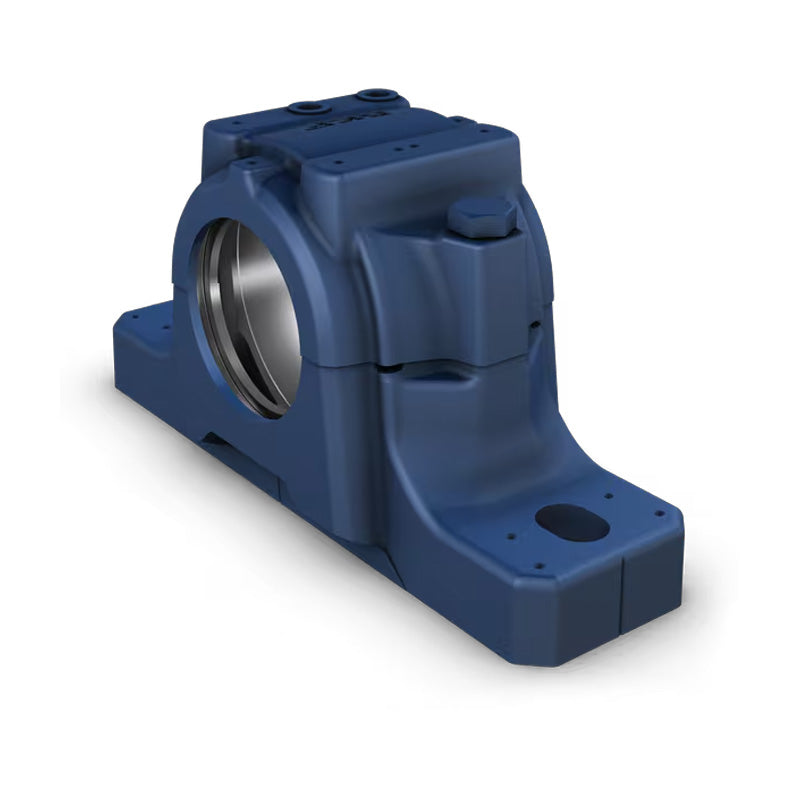

SKF SE510-608 Cast Iron Split Pillow Block Housing
SKF SE510-608 Cast Iron Split Pillow Block Housing
Regular price
CHF 74.00
ex VAT
Regular price
Sale price
CHF 74.00
ex VAT
Equivalent to: SNL510-608
In stock
Price Break
4+
CHF 58.40
9+
CHF 55.12
19+
CHF 54.47
29+
CHF 53.81
39+
CHF 53.15
49+
CHF 52.50
59+
CHF 49.22
69+
CHF 48.56
79+
CHF 47.90
89+
CHF 47.25
99+
CHF 45.94
Description
Description
|
SKF SE Split Plummer Block Housings: SE plummer block housings are a new generation of the SNL plummer block housings. SE housings in series 2, 3, 5 & 6 supersede SNL housings in the 2, 3, 5, & 6 series from size 507-606 up to and including SE 515-612. These housings consist of a cap and base, and feature two holes as standard cast into the base for attachment bolts. Benefits: More robust compared to SNL housings, easy installation. |
Equivalent: SNL510-608
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 169.86mm = 6.687 (6-11/16) inch
Technical
Technical
| da | 35mm |
|---|---|
| A | 3-9/16 inch = 90mm |
| A1 | 2-3/8 inch = 60mm |
| A2 | 4 inch = 102mm |
| A3 | 5-15/16 inch = 150mm |
| H | 4-1/2 inch = 113mm |
| H1 | 2.362 inch = 60mm |
| H2 | 1 inch = 25mm |
| J max | 6-7/8 inch = 175mm |
| J min | 6-1/2 inch = 165mm |
| J | 6-11/16 inch = 170mm |
| L | 8-1/8 inch = 205mm |
| N | 3/4 inch = 20mm |
| N1 | 5/8 inch = 15mm |
| G | 1/2 inch = 12mm |
| Weight | 3.83 kg |
