SKU: SE511-609VU-SKF

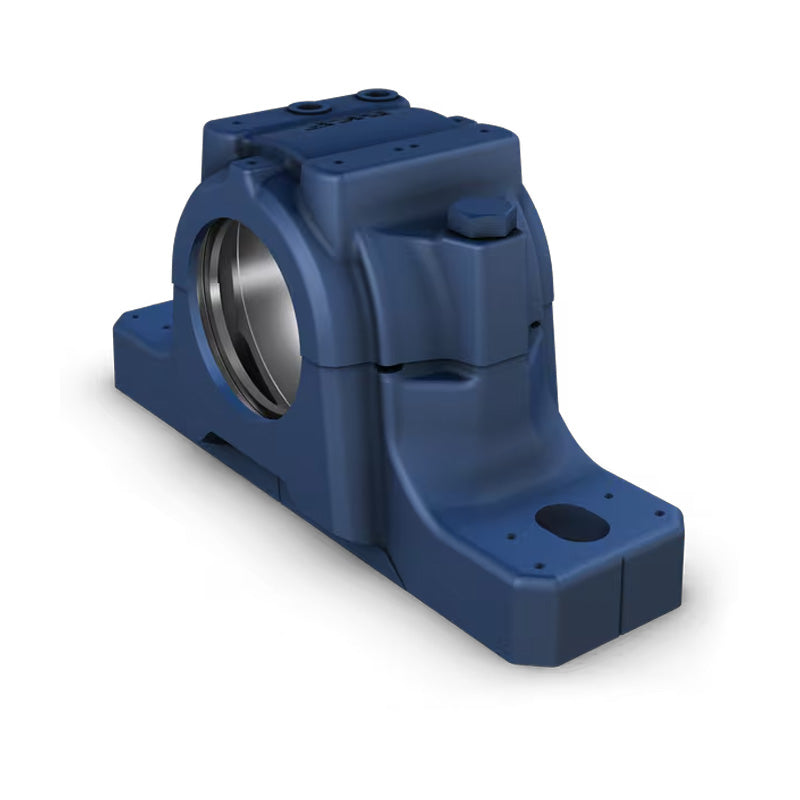

SKF SE511-609VU Cast Iron Split Pillow Block Housing with Two Grease Escape Holes
SKF SE511-609VU Cast Iron Split Pillow Block Housing with Two Grease Escape Holes
Regular price
CHF 190.00
ex VAT
Regular price
Sale price
CHF 190.00
ex VAT
Equivalent to: SNL511-609VU
In stock
Price Break
4+
CHF 151.23
9+
CHF 142.74
19+
CHF 141.04
29+
CHF 139.34
39+
CHF 137.64
49+
CHF 135.94
59+
CHF 127.44
69+
CHF 125.74
79+
CHF 124.05
89+
CHF 122.35
99+
CHF 118.95
Description
Description
|
SKF SE Split Plummer Block Housings: SE plummer block housings are a new generation of the SNL plummer block housings. SE housings in series 2, 3, 5 & 6 supersede SNL housings in the 2, 3, 5, & 6 series from size 507-606 up to and including SE 515-612. These housings consist of a cap and base, and feature two holes as standard cast into the base for attachment bolts. Benefits: More robust compared to SNL housings, easy installation. |
Equivalent: SNL511-609VU
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 211.14mm = 8.313 (8-5/16) inch
Technical
Technical
| da | 40mm |
|---|---|
| A | 3-3/4 inch = 95mm |
| A1 | 2-3/4 inch = 70mm |
| A2 | 4-1/4 inch = 107mm |
| A3 | 6-1/8 inch = 155mm |
| H | 5 inch = 128mm |
| H1 | 2.756 inch = 70mm |
| H2 | 1-1/8 inch = 28mm |
| J max | 8-7/16 inch = 215mm |
| J min | 8-1/16 inch = 205mm |
| J | 8-5/16 inch = 210mm |
| L | 10-1/16 inch = 255mm |
| N | 1 inch = 24mm |
| N1 | 3/4 inch = 18mm |
| G | 5/8 inch = 16mm |
| Weight | 5.46 kg |
