SKU: SE515-612VU-SKF

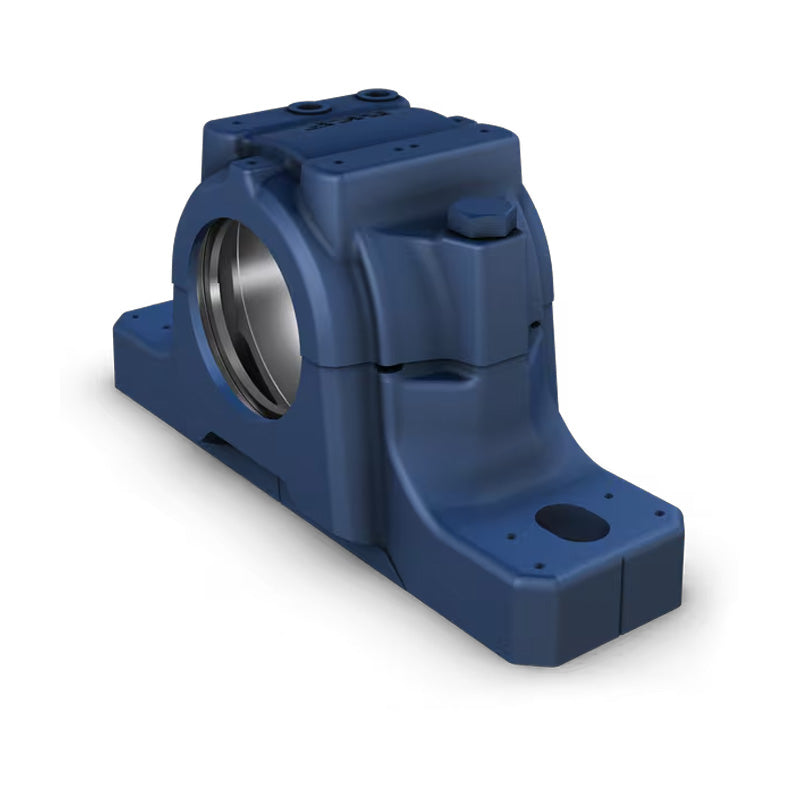

SKF SE515-612VU Cast Iron Split Pillow Block Housing with Two Grease Escape Holes
SKF SE515-612VU Cast Iron Split Pillow Block Housing with Two Grease Escape Holes
Regular price
CHF 301.00
ex VAT
Regular price
Sale price
CHF 301.00
ex VAT
Equivalent to: SNL515-612VU
In stock
Price Break
4+
CHF 239.84
9+
CHF 226.36
19+
CHF 223.67
29+
CHF 220.97
39+
CHF 218.28
49+
CHF 215.58
59+
CHF 202.11
69+
CHF 199.42
79+
CHF 196.72
89+
CHF 194.03
99+
CHF 188.64
Description
Description
|
SKF SE Split Plummer Block Housings: SE plummer block housings are a new generation of the SNL plummer block housings. SE housings in series 2, 3, 5 & 6 supersede SNL housings in the 2, 3, 5, & 6 series from size 507-606 up to and including SE 515-612. These housings consist of a cap and base, and feature two holes as standard cast into the base for attachment bolts. Benefits: More robust compared to SNL housings, easy installation. |
Equivalent: SNL515-612VU
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 231.78mm = 9.125 (9-1/8) inch
Technical
Technical
| da | 55mm |
|---|---|
| A | 4-5/8 inch = 115mm |
| A1 | 3-1/8 inch = 80mm |
| A2 | 5 inch = 127mm |
| A3 | 6-7/8 inch = 175mm |
| H | 6-1/8 inch = 154mm |
| H1 | 3.150 inch = 80mm |
| H2 | 1-3/16 inch = 30mm |
| J max | 9-3/8 inch = 238mm |
| J min | 8-3/4 inch = 222mm |
| J | 9-1/8 inch = 230mm |
| L | 11 inch = 280mm |
| N | 1 inch = 24mm |
| N1 | 3/4 inch = 18mm |
| G | 5/8 inch = 16mm |
| Weight | 8.57 kg |
