SKU: SER.201-8

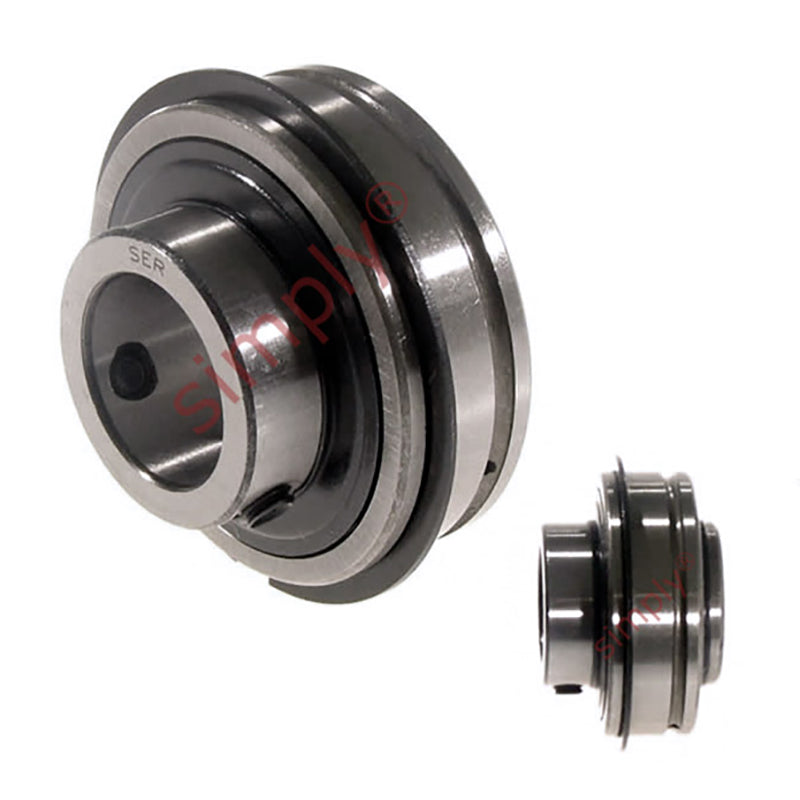

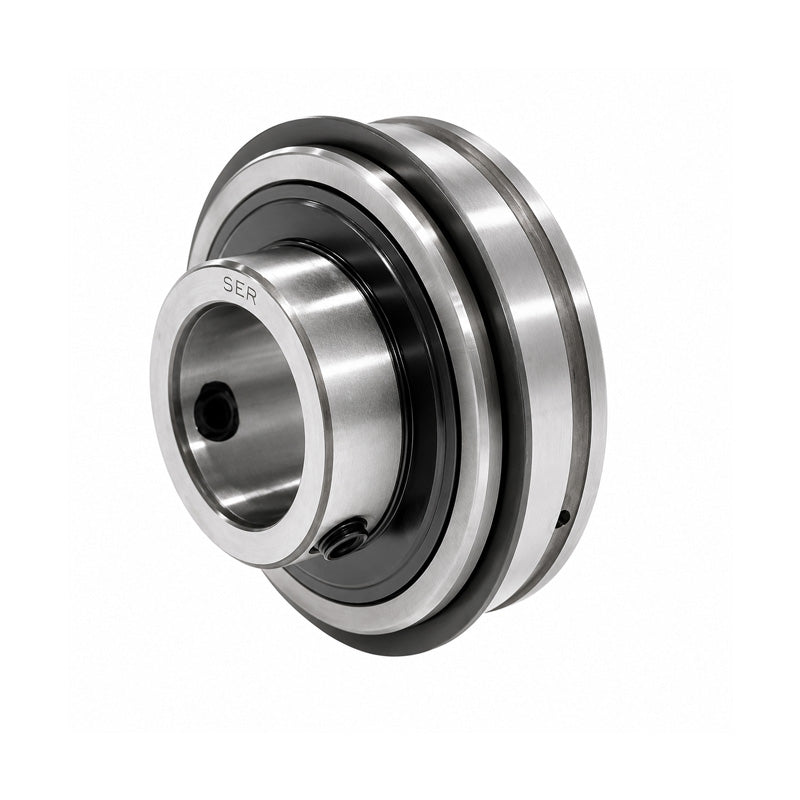

SER201-8 Imperial Bearing Insert and Snap Ring 1/2 inch Bore 47mm Outside Dia
SER201-8 Imperial Bearing Insert and Snap Ring 1/2 inch Bore 47mm Outside Dia
Regular price
CHF 22.00
ex VAT
Regular price
Sale price
CHF 22.00
ex VAT
In stock
Price Break
3+
CHF 17.25
4+
CHF 16.28
9+
CHF 16.09
19+
CHF 15.89
49+
CHF 15.70
99+
CHF 15.50
499+
CHF 14.54
999+
CHF 14.34
1999+
CHF 14.15
2999+
CHF 13.95
4999+
CHF 13.57
Description
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Outside Diameter:
- 47mm
- Style:
- SER
Technical
Technical
| d | 1/2 inch |
|---|---|
| D | 47mm |
| Bi | 31mm |
| Be | 15.9mm |
| n | 12.7mm |
| m | 18.3mm |
| E | 12.09mm |
| a | 1.07mm |
| h | 4mm |
| R | 4.14mm |
| J | 2.46mm |
| P | 52.7mm |
| G | 4.8mm |
| Grub screw | 1/4"-28UNF |
| Weight | 0.22 kg |
| Dynamic load | 1010 kgf |
| Static load | 630 kgf |
