SKU: SER.203

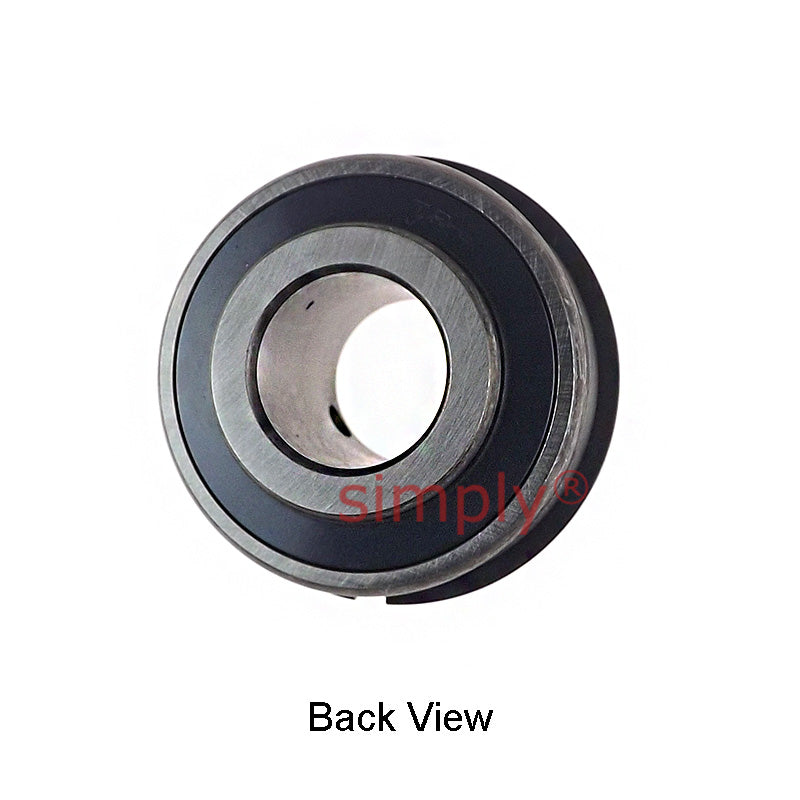

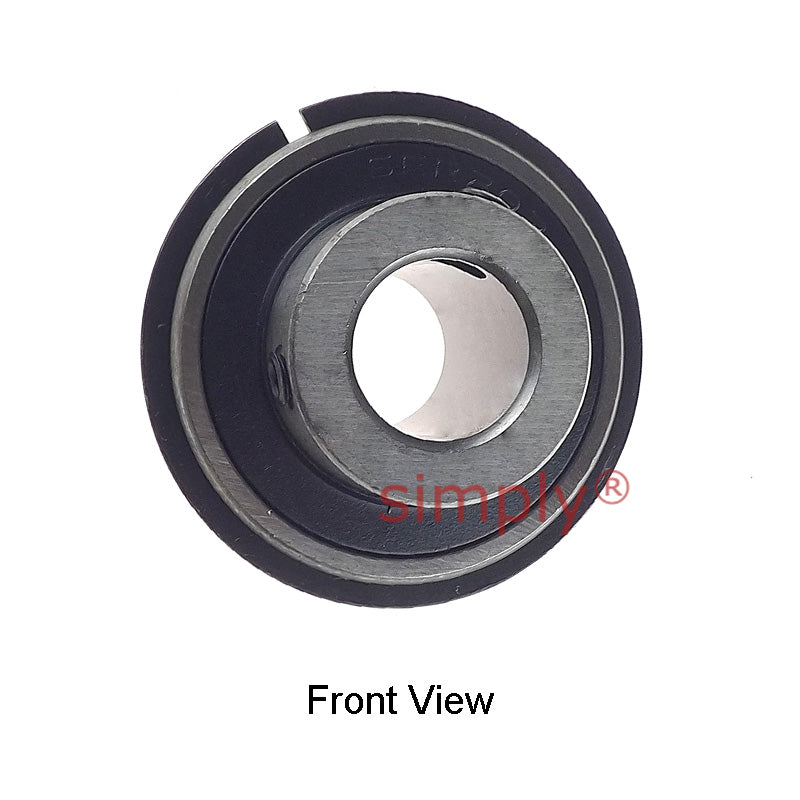

SER203 Metric Bearing Insert and Snap Ring 17mm Bore 47mm Outside Dia
SER203 Metric Bearing Insert and Snap Ring 17mm Bore 47mm Outside Dia
Regular price
CHF 14.60
ex VAT
Regular price
Sale price
CHF 14.60
ex VAT
In stock
Price Break
10+
CHF 12.99
19+
CHF 12.26
29+
CHF 12.12
39+
CHF 11.97
49+
CHF 11.83
74+
CHF 11.68
99+
CHF 10.95
199+
CHF 10.80
249+
CHF 10.66
499+
CHF 10.51
999+
CHF 10.22
Couldn't load pickup availability
Description
Description
|

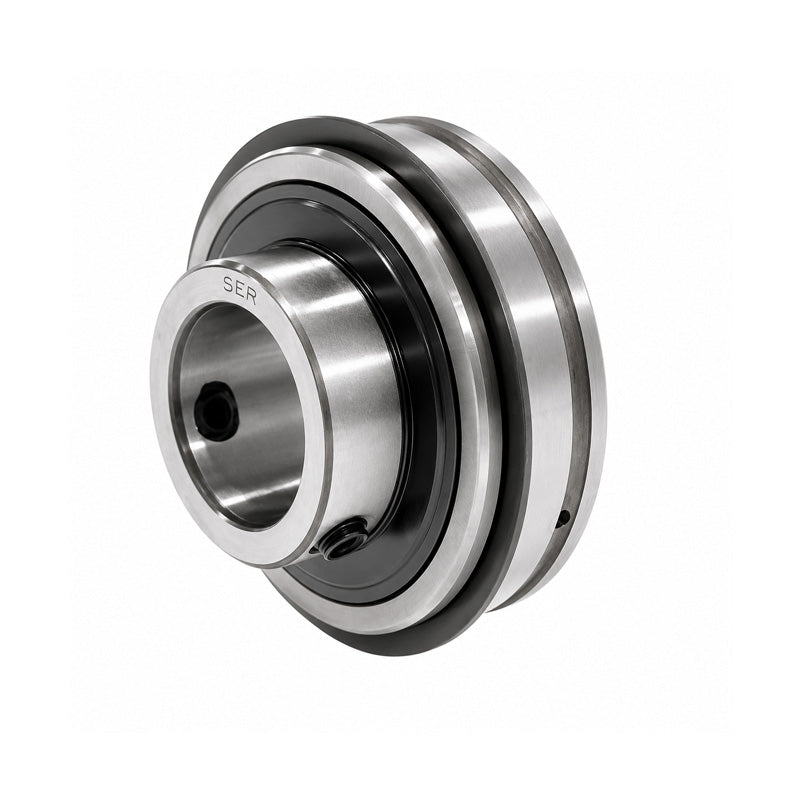

SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 47mm
- Style:
- SER
- Type:
- Parallel Outer
Technical
Technical
| d | 17mm |
|---|---|
| D | 47mm |
| Bi | 31mm |
| Be | 15.9mm |
| n | 12.7mm |
| m | 18.3mm |
| E | 12.09mm |
| a | 1.07mm |
| h | 4mm |
| R | 4.14mm |
| J | 2.46mm |
| P | 52.7mm |
| G | 4.8mm |
| Grub screw | M6X1.0 |
| Weight | 0.22 kg |
| Dynamic load | 1010 kgf |
| Static load | 630 kgf |
