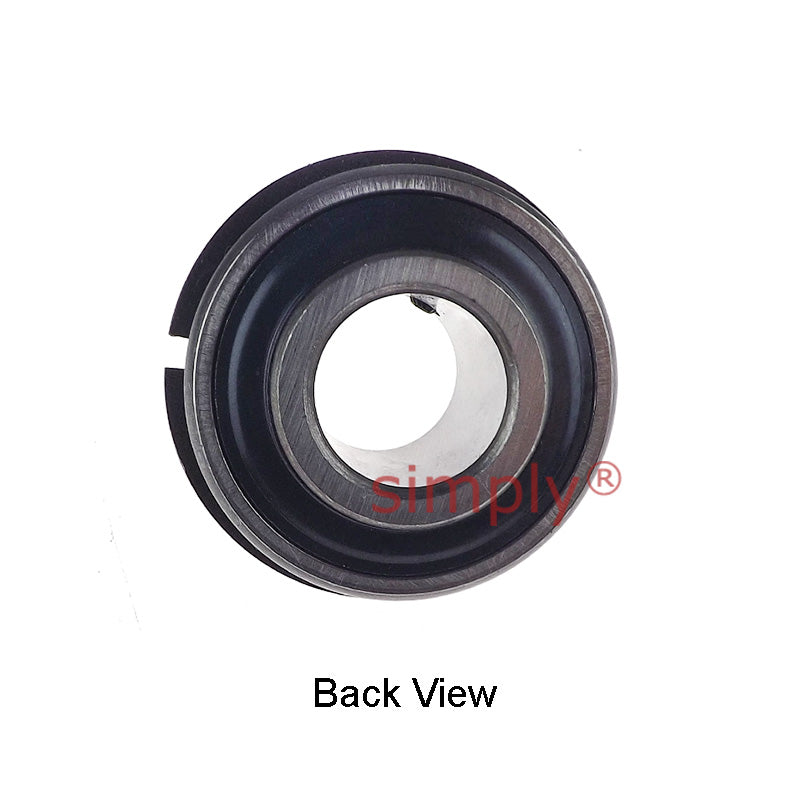

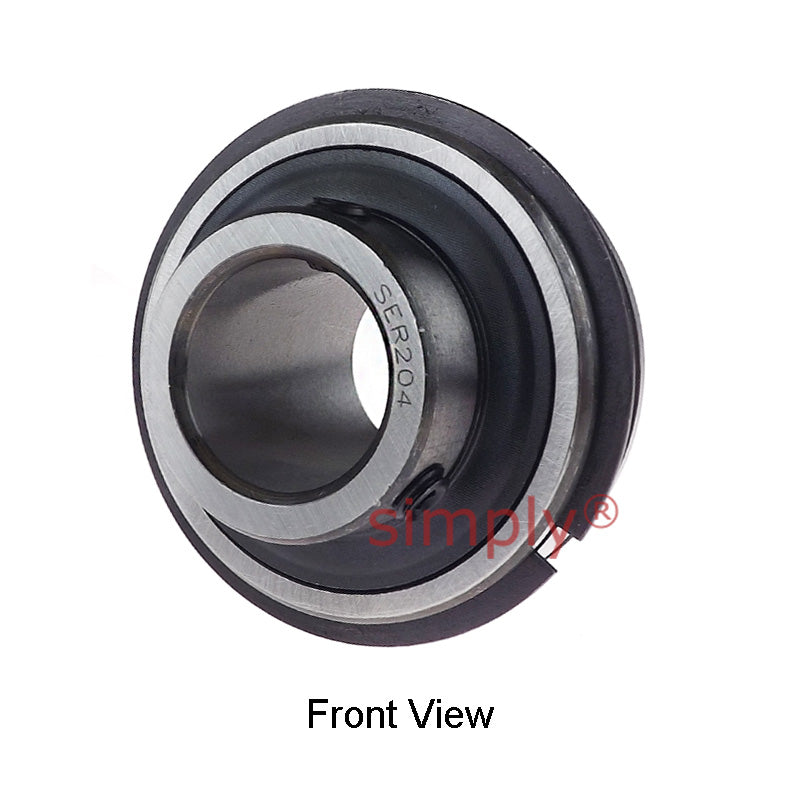

• SER204 Metric Bearing Insert and Snap Ring 20mm Bore 47mm Outside Dia
  • SER204 Metric Bearing Insert and Snap Ring 20mm Bore 47mm Outside Dia
1 2

SKU: SER.204

SER204 Metric Bearing Insert and Snap Ring 20mm Bore 47mm Outside Dia

SER204 Metric Bearing Insert and Snap Ring 20mm Bore 47mm Outside Dia
CHF 10.00 ex VAT
CHF 10.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 7.76
4+ CHF 7.32
9+ CHF 7.24
19+ CHF 7.15
49+ CHF 7.06
99+ CHF 6.98
499+ CHF 6.54
999+ CHF 6.45
1999+ CHF 6.37
2999+ CHF 6.28
4999+ CHF 6.10
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

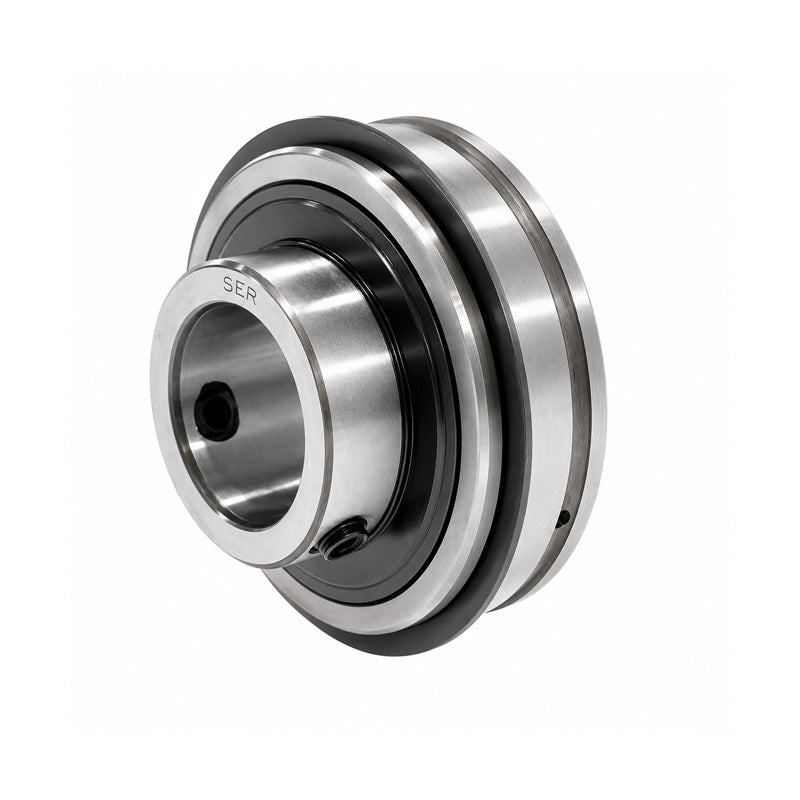

SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
20mm
Outside Diameter:
47mm
Style:
SER
Technical
d 20mm
D 47mm
Bi 31mm
Be 15.9mm
n 12.7mm
m 18.3mm
E 12.09mm
a 1.07mm
h 4mm
R 4.14mm
J 2.46mm
P 52.7mm
G 4.8mm
Grub screw M6X1.0
Weight 0.22 kg
Dynamic load 1010 kgf
Static load 630 kgf
Rec max speed 7450 rpm
