SKU: SER.204-12

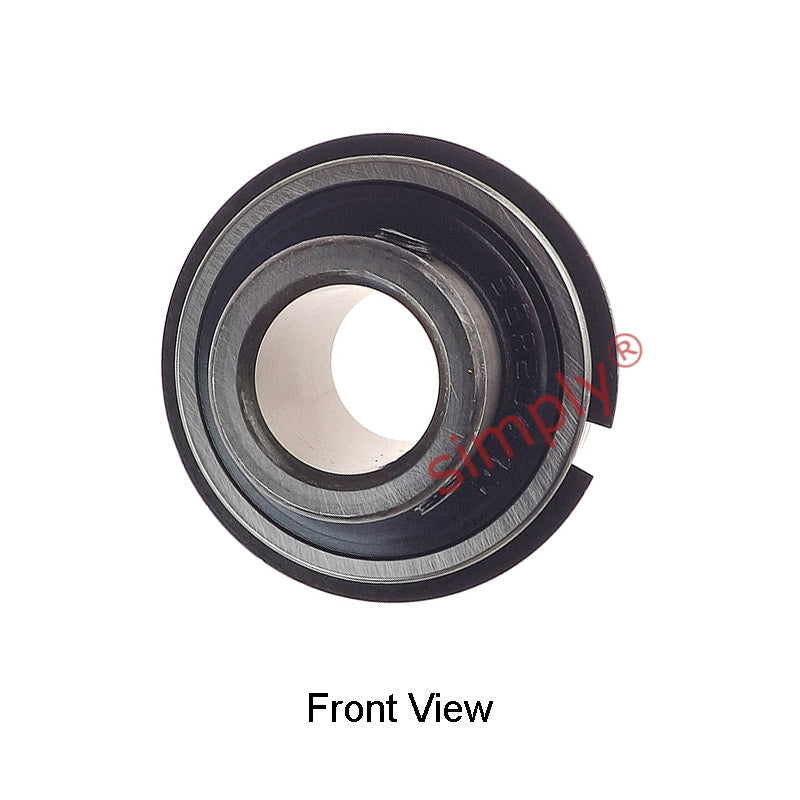

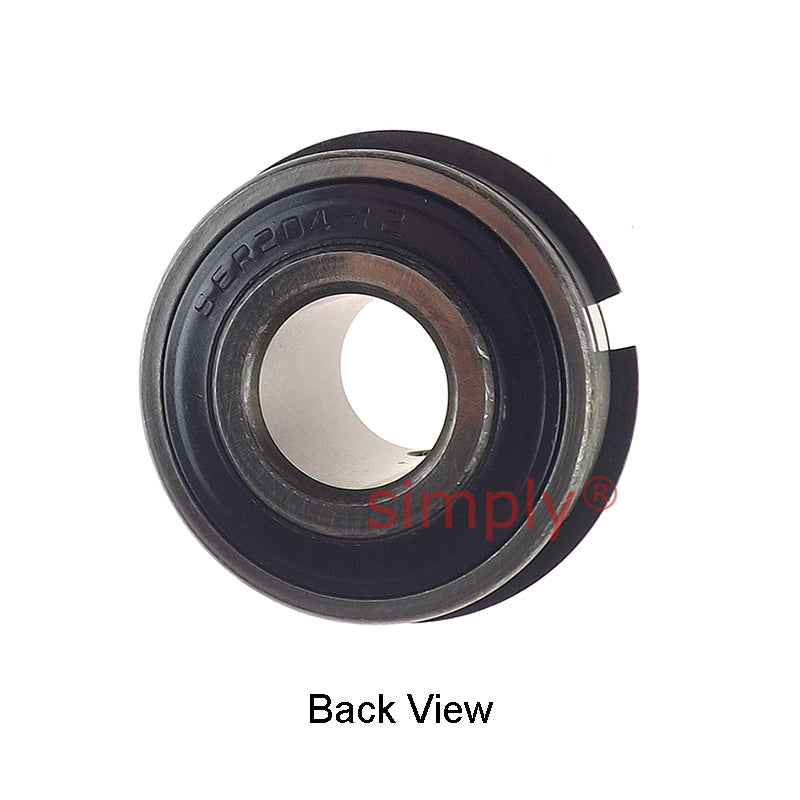

SER204-12 Imperial Bearing Insert and Snap Ring 3/4 inch Bore 47mm Outside Dia
SER204-12 Imperial Bearing Insert and Snap Ring 3/4 inch Bore 47mm Outside Dia
Regular price
CHF 10.00
ex VAT
Regular price
Sale price
CHF 10.00
ex VAT
In stock
Price Break
3+
CHF 7.50
4+
CHF 7.08
9+
CHF 7.00
19+
CHF 6.91
49+
CHF 6.83
99+
CHF 6.74
499+
CHF 6.32
999+
CHF 6.24
1999+
CHF 6.15
2999+
CHF 6.07
4999+
CHF 5.90
Description
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 47mm
- Style:
- SER
Technical
Technical
| d | 3/4 inch |
|---|---|
| D | 47mm |
| Bi | 31mm |
| Be | 15.9mm |
| n | 12.7mm |
| m | 18.3mm |
| E | 12.09mm |
| a | 1.07mm |
| h | 4mm |
| R | 4.14mm |
| J | 2.46mm |
| P | 52.7mm |
| G | 4.8mm |
| Grub screw | 1/4"-28UNF |
| Weight | 0.22 kg |
| Dynamic load | 1010 kgf |
| Static load | 630 kgf |
| Rec max speed | 7450 rpm |
