SKU: SER.205

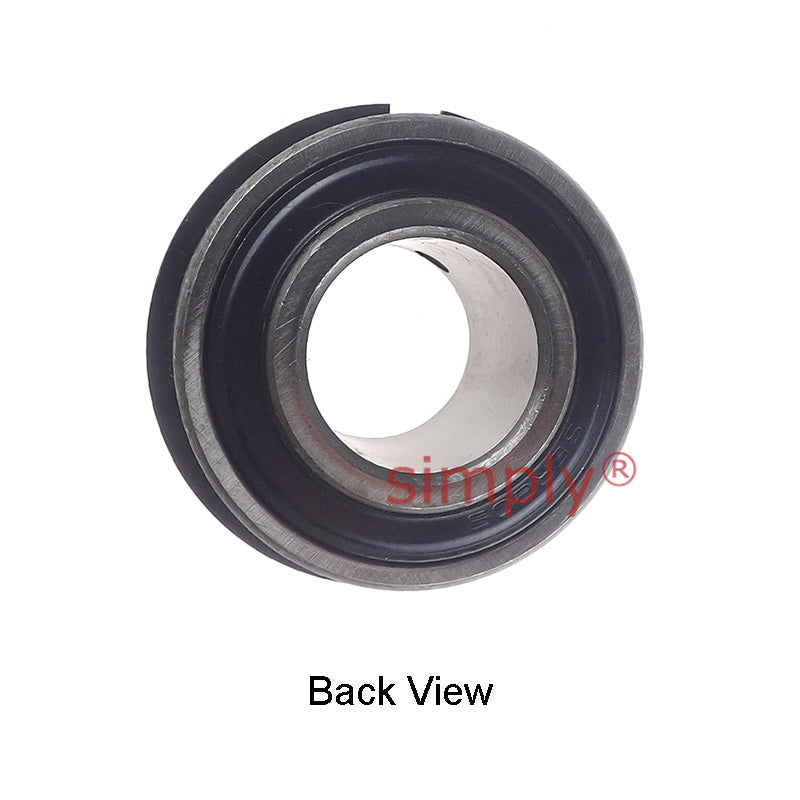

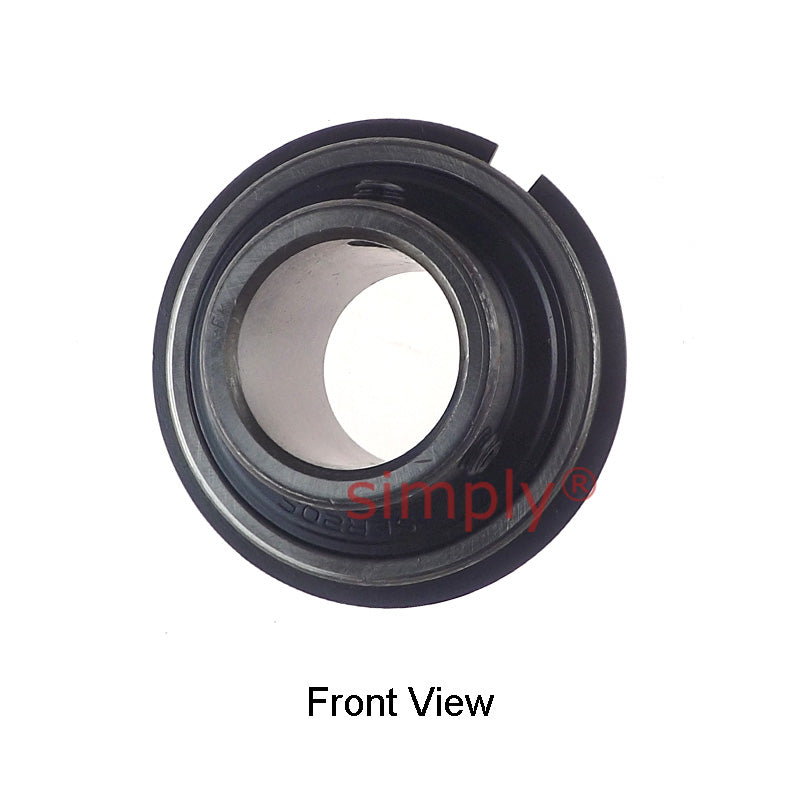

SER205 Metric Bearing Insert and Snap Ring 25mm Bore 52mm Outside Dia
SER205 Metric Bearing Insert and Snap Ring 25mm Bore 52mm Outside Dia
Regular price
CHF 12.00
ex VAT
Regular price
Sale price
CHF 12.00
ex VAT
In stock
Price Break
3+
CHF 9.52
4+
CHF 8.99
9+
CHF 8.88
19+
CHF 8.77
49+
CHF 8.67
99+
CHF 8.56
499+
CHF 8.02
999+
CHF 7.92
1999+
CHF 7.81
2999+
CHF 7.70
4999+
CHF 7.49
Description
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Style:
- SER
Technical
Technical
| d | 25mm |
|---|---|
| D | 52mm |
| Bi | 34.9mm |
| Be | 19.1mm |
| n | 13.1mm |
| m | 21.8mm |
| E | 15.29mm |
| a | 1.07mm |
| h | 5.2mm |
| R | 5.74mm |
| J | 2.46mm |
| P | 57.9mm |
| G | 5.6mm |
| Grub screw | M6X1.0 |
| Weight | 0.27 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
| Rec max speed | 6250 rpm |
