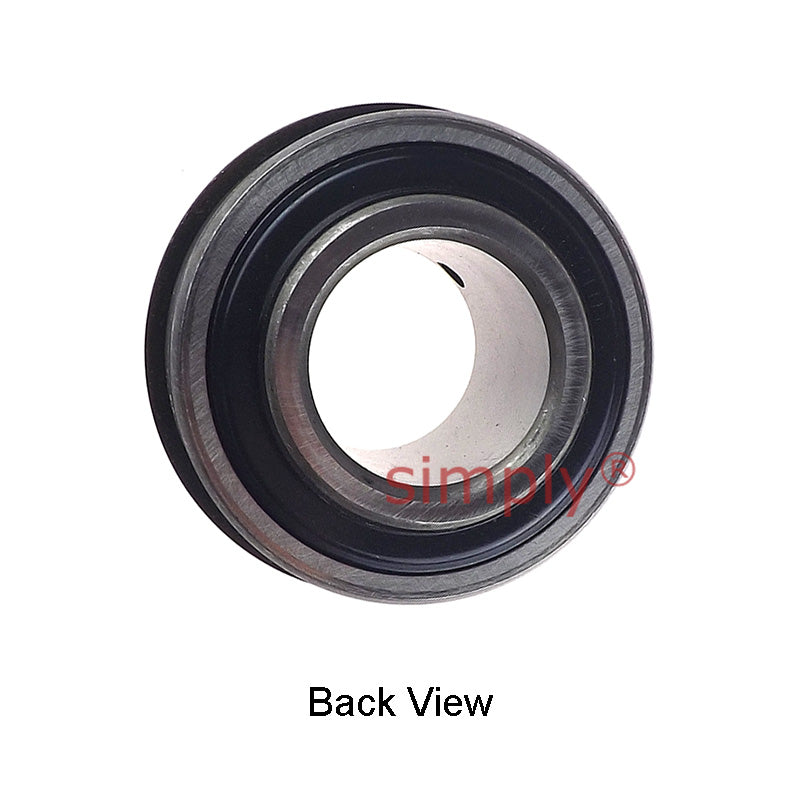

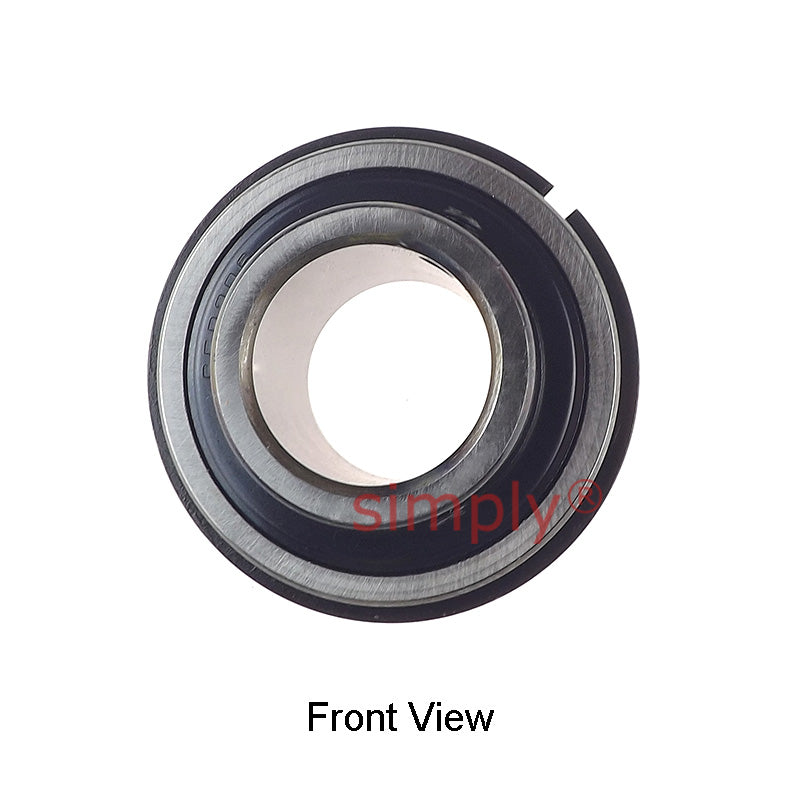

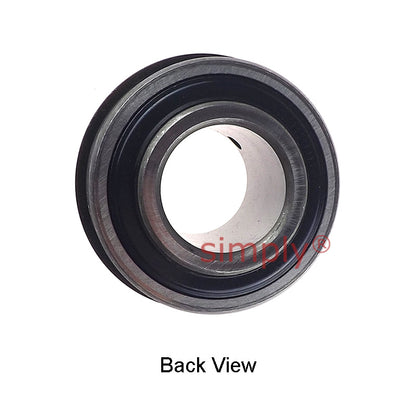

SER206 Metric Bearing Insert and Snap Ring 30mm Bore 62mm Outside Dia
SER206 Metric Bearing Insert and Snap Ring 30mm Bore 62mm Outside Dia
Regular price
CHF 9.14
ex VAT
Regular price
Sale price
CHF 9.14
ex VAT
In stock
Price Break
10+
CHF 8.13
19+
CHF 7.68
29+
CHF 7.59
39+
CHF 7.49
49+
CHF 7.40
74+
CHF 7.31
99+
CHF 6.86
199+
CHF 6.76
249+
CHF 6.67
499+
CHF 6.58
999+
CHF 6.40
Couldn't load pickup availability
Description
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Style:
- SER
Technical
Technical
| d | 30mm |
|---|---|
| D | 62mm |
| Bi | 38.1mm |
| Be | 22.2mm |
| n | 15.9mm |
| m | 22.2mm |
| E | 17.02mm |
| a | 1.65mm |
| h | 5.6mm |
| R | 5.92mm |
| J | 3.28mm |
| P | 67.7mm |
| G | 5.6mm |
| Grub screw | 1/4"-28UNF |
| Weight | 0.39 kg |
| Dynamic load | 1530 kgf |
| Static load | 1020 kgf |
| Rec max speed | 5300 rpm |
