SKU: SER.206-18

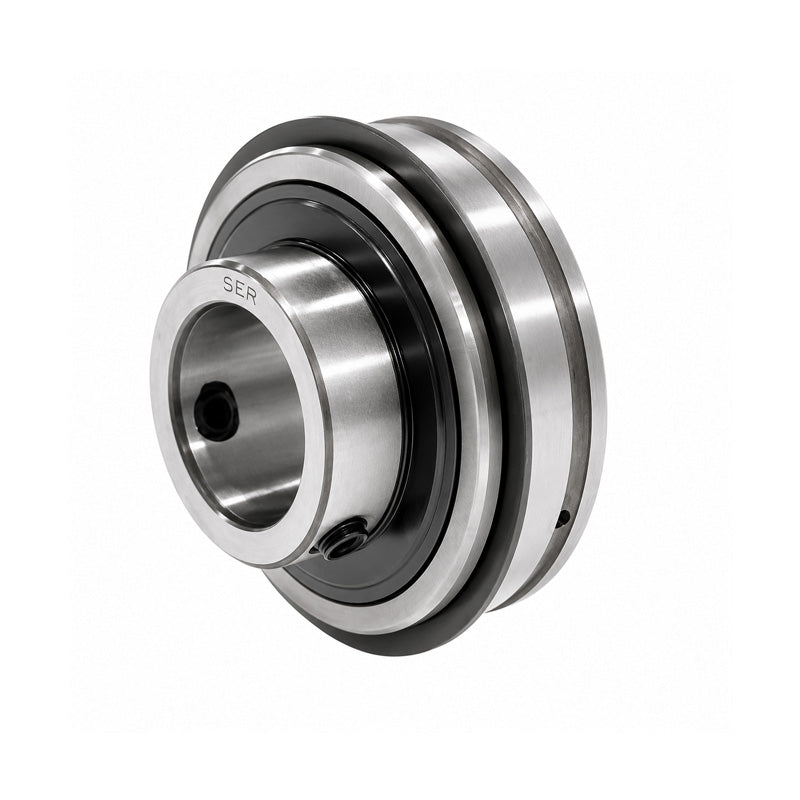

SER206-18 Imperial Bearing Insert and Snap Ring 1-1/8 inch Bore 62mm Outside Dia
SER206-18 Imperial Bearing Insert and Snap Ring 1-1/8 inch Bore 62mm Outside Dia
Regular price
CHF 9.14
ex VAT
Regular price
Sale price
CHF 9.14
ex VAT
In stock
Price Break
10+
CHF 8.13
19+
CHF 7.68
29+
CHF 7.59
39+
CHF 7.49
49+
CHF 7.40
74+
CHF 7.31
99+
CHF 6.86
199+
CHF 6.76
249+
CHF 6.67
499+
CHF 6.58
999+
CHF 6.40
Couldn't load pickup availability
Description
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Outside Diameter:
- 62mm
- Style:
- SER
Technical
Technical
| d | 1-1/8 inch |
|---|---|
| D | 62mm |
| Bi | 38.1mm |
| Be | 22.2mm |
| n | 15.9mm |
| m | 22.2mm |
| E | 17.02mm |
| a | 1.65mm |
| h | 5.6mm |
| R | 5.92mm |
| J | 3.28mm |
| P | 67.7mm |
| G | 5.6mm |
| Grub screw | M6X1.0 |
| Weight | 0.39 kg |
| Dynamic load | 1530 kgf |
| Static load | 1020 kgf |
