SKU: SER.207

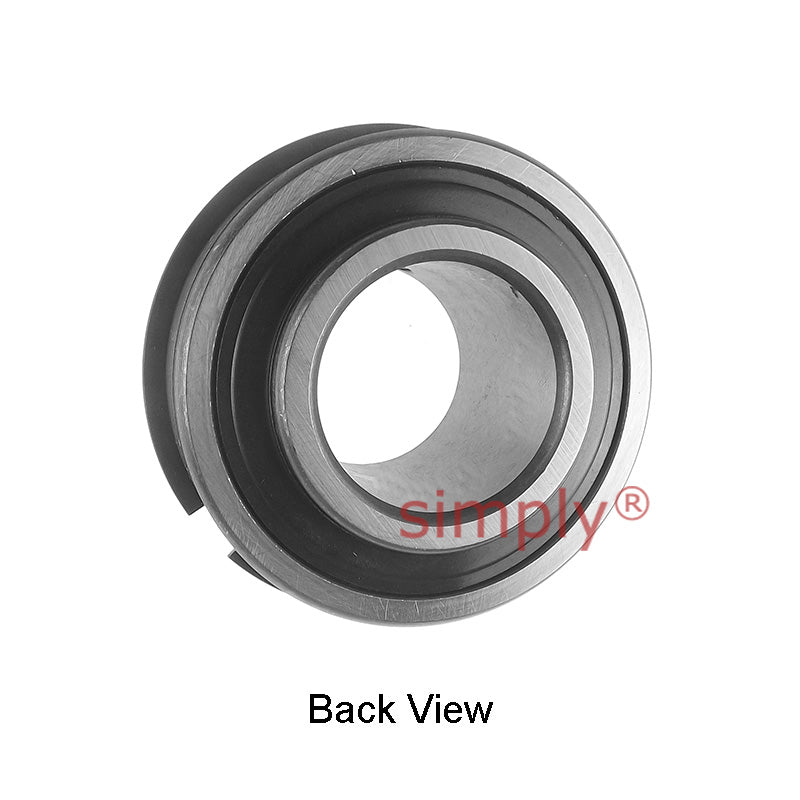

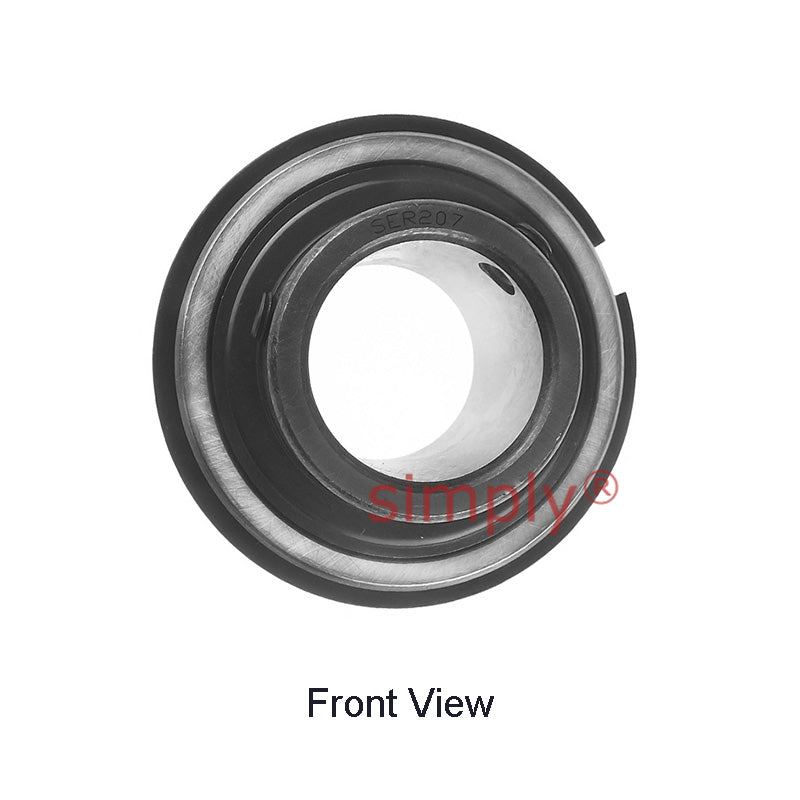

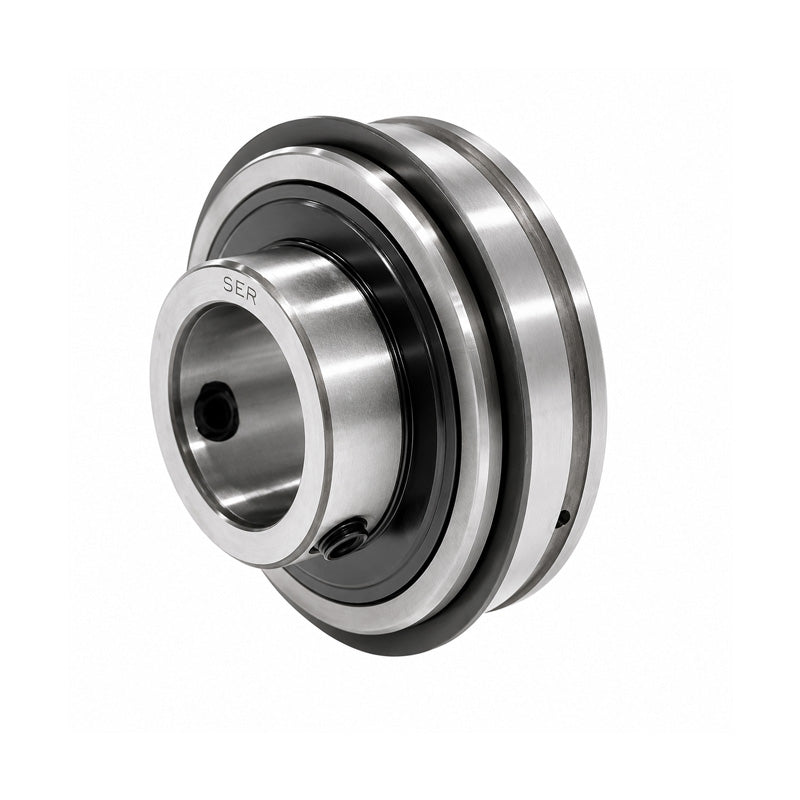

SER207 Metric Bearing Insert and Snap Ring 35mm Bore 72mm Outside Dia
SER207 Metric Bearing Insert and Snap Ring 35mm Bore 72mm Outside Dia
Regular price
CHF 19.39
ex VAT
Regular price
Sale price
CHF 19.39
ex VAT
In stock
Price Break
10+
CHF 17.26
19+
CHF 16.29
29+
CHF 16.09
39+
CHF 15.90
49+
CHF 15.71
74+
CHF 15.51
99+
CHF 14.54
199+
CHF 14.35
249+
CHF 14.15
499+
CHF 13.96
999+
CHF 13.57
Couldn't load pickup availability
Description
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Style:
- SER
- Type:
- Parallel Outer
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| Bi | 42.9mm |
| Be | 23.8mm |
| n | 17.5mm |
| m | 25.4mm |
| E | 18.62mm |
| a | 1.65mm |
| h | 5.6mm |
| R | 6.72mm |
| J | 3.28mm |
| P | 78.6mm |
| G | 6.5mm |
| Grub screw | M8x1.0 |
| Weight | 0.56 kg |
| Dynamic load | 2020 kgf |
| Static load | 1390 kgf |
| Rec max speed | 4500 rpm |
