SKU: SER.207-20

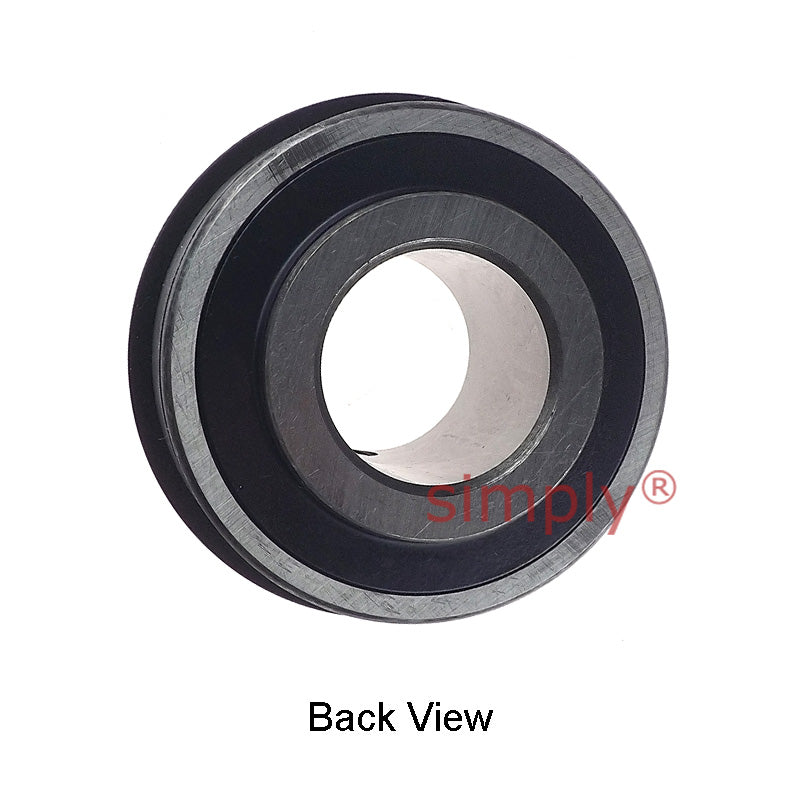

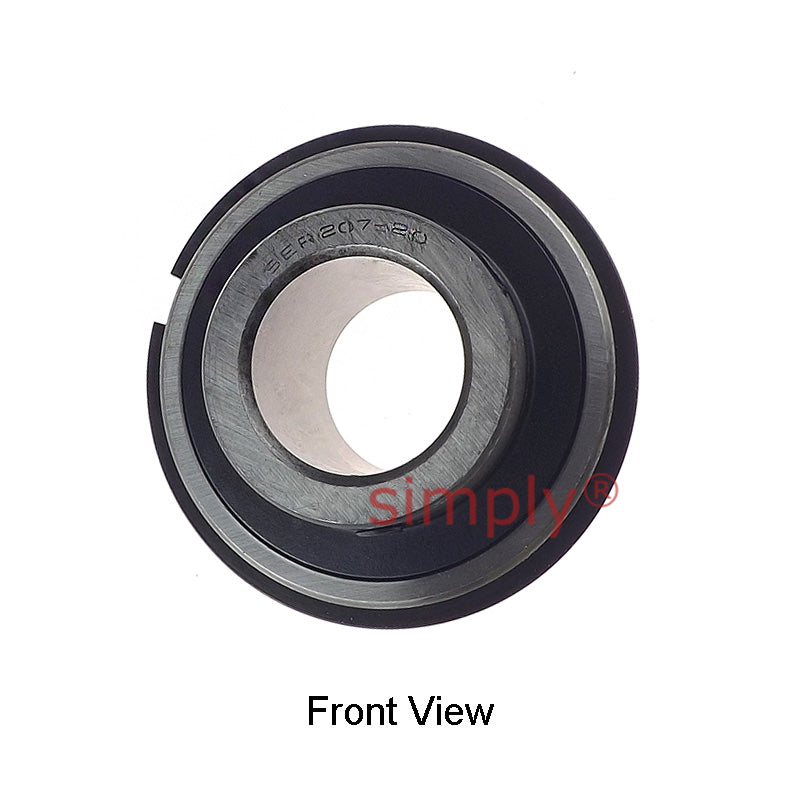

SER207-20 Imperial Bearing Insert and Snap Ring 1-1/4 inch Bore 72mm Outside Dia
SER207-20 Imperial Bearing Insert and Snap Ring 1-1/4 inch Bore 72mm Outside Dia
Regular price
CHF 20.00
ex VAT
Regular price
Sale price
CHF 20.00
ex VAT
In stock
Price Break
3+
CHF 15.39
4+
CHF 14.52
9+
CHF 14.35
19+
CHF 14.18
49+
CHF 14.00
99+
CHF 13.83
499+
CHF 12.97
999+
CHF 12.79
1999+
CHF 12.62
2999+
CHF 12.45
4999+
CHF 12.10
Description
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 72mm
- Style:
- SER
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| D | 72mm |
| Bi | 42.9mm |
| Be | 23.8mm |
| n | 17.5mm |
| m | 25.4mm |
| E | 18.62mm |
| a | 1.65mm |
| h | 5.6mm |
| R | 6.72mm |
| J | 3.28mm |
| P | 78.6mm |
| G | 6.5mm |
| Grub screw | 5/16"-24UNF |
| Weight | 0.56 kg |
| Dynamic load | 2020 kgf |
| Static load | 1390 kgf |
| Rec max speed | 4500 rpm |
