SKU: SER.210-30

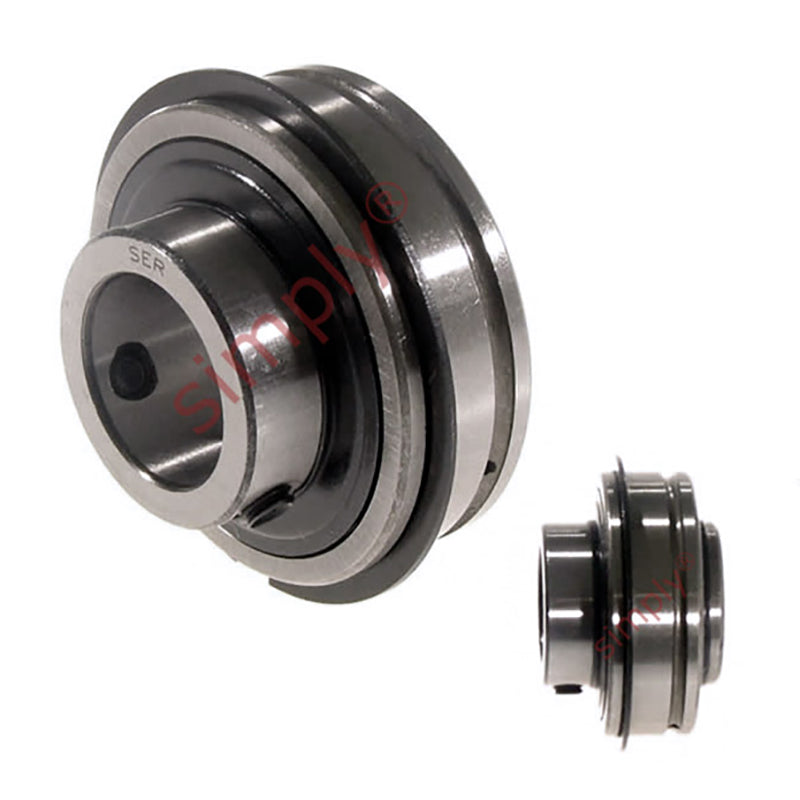

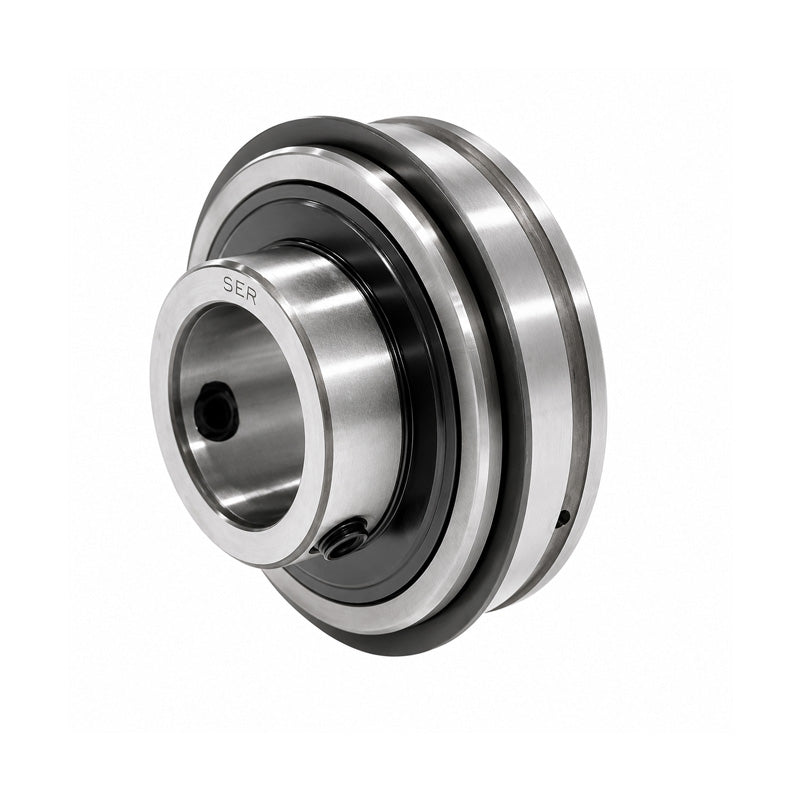

SER210-30 Imperial Bearing Insert and Snap Ring 1-7/8 inch Bore 90mm Outside Dia
SER210-30 Imperial Bearing Insert and Snap Ring 1-7/8 inch Bore 90mm Outside Dia
Regular price
CHF 25.89
ex VAT
Regular price
Sale price
CHF 25.89
ex VAT
In stock
Price Break
10+
CHF 23.04
19+
CHF 21.75
29+
CHF 21.49
39+
CHF 21.23
49+
CHF 20.97
74+
CHF 20.71
99+
CHF 19.42
199+
CHF 19.16
249+
CHF 18.90
499+
CHF 18.64
999+
CHF 18.12
Couldn't load pickup availability
Description
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 47.63mm = 1.875 (1-7/8) inch
- Outside Diameter:
- 90mm
- Style:
- SER
Technical
Technical
| d | 1-7/8 inch |
|---|---|
| D | 90mm |
| Bi | 51.6mm |
| Be | 28.6mm |
| n | 19mm |
| m | 32.6mm |
| E | 22.62mm |
| a | 2.41mm |
| h | 7.5mm |
| R | 8.32mm |
| J | 3.28mm |
| P | 96.5mm |
| G | 9.5mm |
| Grub screw | 3/8"-24UNF |
| Weight | 0.93 kg |
| Dynamic load | 2750 kgf |
| Static load | 2020 kgf |
