SKU: SER.212-39

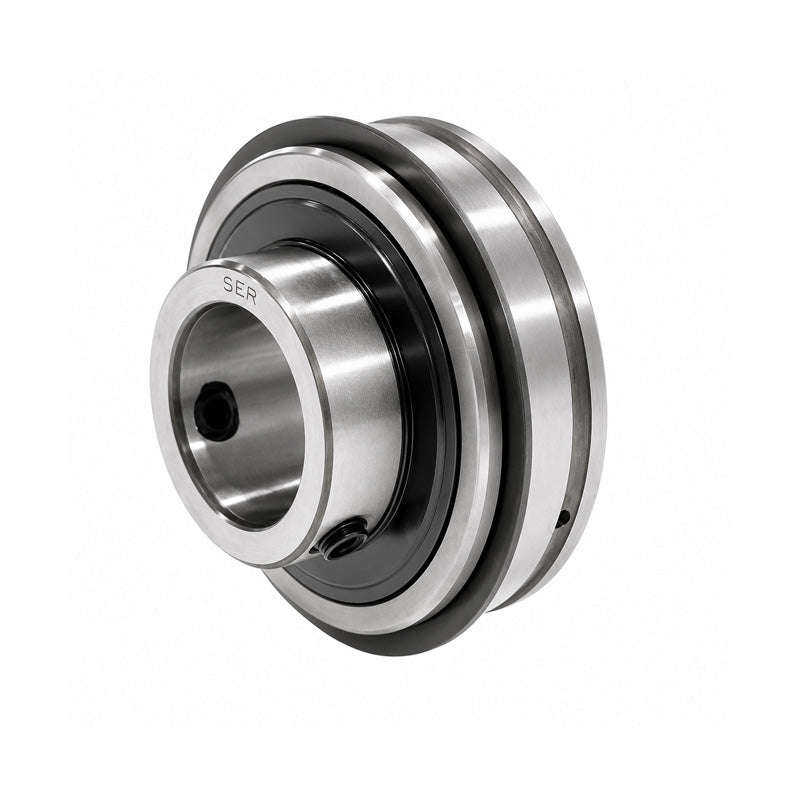

SER212-39 Imperial Bearing Insert and Snap Ring 2-7/16 inch Bore 110mm Outside Dia
SER212-39 Imperial Bearing Insert and Snap Ring 2-7/16 inch Bore 110mm Outside Dia
Regular price
CHF 30.75
ex VAT
Regular price
Sale price
CHF 30.75
ex VAT
In stock
Price Break
10+
CHF 27.37
19+
CHF 25.83
29+
CHF 25.52
39+
CHF 25.22
49+
CHF 24.91
74+
CHF 24.60
99+
CHF 23.06
199+
CHF 22.76
249+
CHF 22.45
499+
CHF 22.14
999+
CHF 21.53
Couldn't load pickup availability
Description
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Outside Diameter:
- 110mm
- Style:
- SER

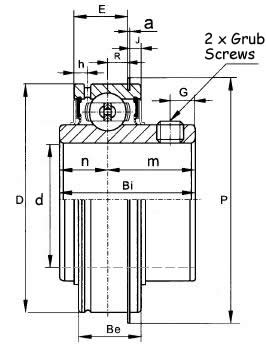

Technical
Technical
| d | 2-7/16 inch |
|---|---|
| D | 110mm |
| Bi | 65.1mm |
| Be | 31.8mm |
| n | 25.4mm |
| m | 39.7mm |
| E | 25.82mm |
| a | 2.41mm |
| h | 7.5mm |
| R | 9.92mm |
| J | 3.28mm |
| P | 116.6mm |
| G | 11.1mm |
| Grub screw | 3/8"-24UNF |
| Weight | 1.71 kg |
| Dynamic load | 4100 kgf |
| Static load | 3150 kgf |
