SKU: SF1.1/8EC-RHP

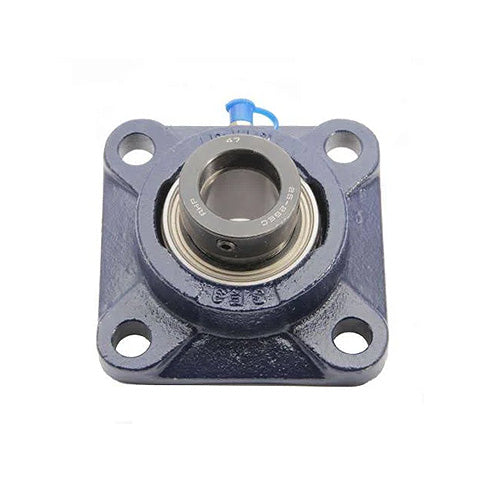

RHP SF1-1/8EC Four Bolt Square Cast Iron Flange Housing and 1-1/8 inch Bore Eccentric Collar Flat Back Insert
RHP SF1-1/8EC Four Bolt Square Cast Iron Flange Housing and 1-1/8 inch Bore Eccentric Collar Flat Back Insert
Regular price
CHF 36.34
ex VAT
Regular price
Sale price
CHF 36.34
ex VAT
In stock
Price Break
10+
CHF 32.34
19+
CHF 30.53
29+
CHF 30.16
39+
CHF 29.80
49+
CHF 29.44
74+
CHF 29.07
99+
CHF 27.26
199+
CHF 26.89
249+
CHF 26.53
499+
CHF 26.16
999+
CHF 25.44
Couldn't load pickup availability
Description
Description
|
RHP SF EC Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a flat back sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Style:
- SF
- Bolt Hole Centres:
- 82.5mm = 3.248 inch
Technical
Technical
| Bore | 1-1/8 inch |
|---|---|
| L | 4.252 inch |
| H | 3.252 inch |
| J | 3.248 inch |
| G | 0.4375 inch |
| A | 1.173 |
| A2 | 1.837 inch |
| A4 | 0.5 inch |
| B2 | 1.405 inch |
| s1 | 0.356 inch |
| d2 | 1.75 inch |
| Dynamic load Cr | 19500 N |
| Static Load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1230-1-1/8ECG+insonly">1230-1-1/8ECG Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
