SKU: SF16-RHP

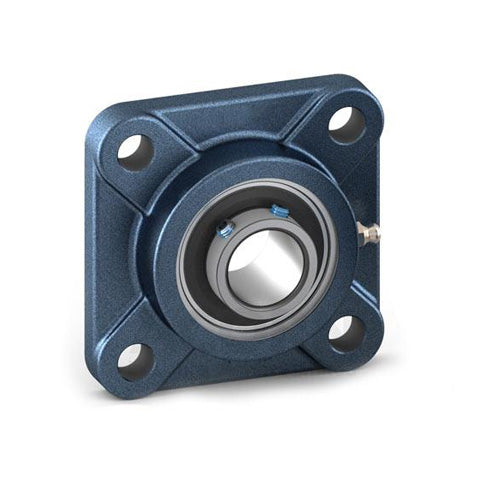

RHP SF16 Four Bolt Square Cast Iron Flange Housing and 16mm Bore Grub Screw Full Width Insert
RHP SF16 Four Bolt Square Cast Iron Flange Housing and 16mm Bore Grub Screw Full Width Insert
Regular price
CHF 37.00
ex VAT
Regular price
Sale price
CHF 37.00
ex VAT
In stock
Price Break
10+
CHF 28.72
20+
CHF 27.10
30+
CHF 26.78
40+
CHF 26.46
50+
CHF 26.14
75+
CHF 25.81
100+
CHF 24.20
200+
CHF 23.88
250+
CHF 23.55
500+
CHF 23.23
1000+
CHF 22.59
Share this product
Description
Description
|
RHP SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a sealed full width bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 16mm
- Style:
- SF
- Bolt Hole Centres:
- 54mm
Technical
Technical
| Bore | 16mm |
|---|---|
| L | 76.2mm |
| H | 52.5mm |
| J | 54mm |
| G | 10mm |
| A | 24.6 |
| A1 | 32.87mm |
| A4 | 9.5mm |
| B | 27.38 |
| s | 11.55mm |
| d1 | 24.21mm |
| Dynamic load Cr | 9550 N |
| Static Load Cor | 4800 N |
| Rec max speed | 7000 rpm |
| Weight | 0.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1017-16G+insonly">1017-16G Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
