SKU: SF2.3/16-RHP

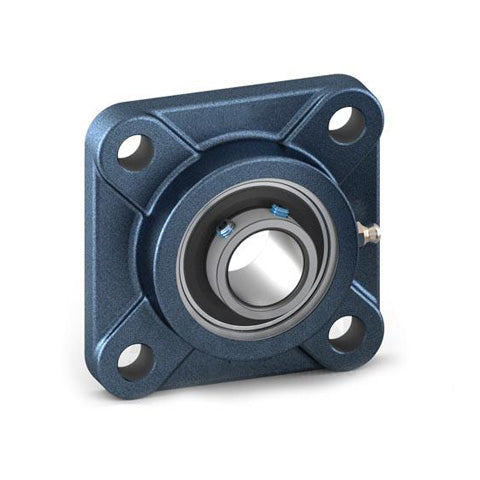

RHP SF2-3/16 Four Bolt Square Cast Iron Flange Housing and 2-3/16 inch Bore Grub Screw Full Width Insert
RHP SF2-3/16 Four Bolt Square Cast Iron Flange Housing and 2-3/16 inch Bore Grub Screw Full Width Insert
Regular price
CHF 123.00
ex VAT
Regular price
Sale price
CHF 123.00
ex VAT
In stock
Price Break
10+
CHF 97.62
20+
CHF 92.14
30+
CHF 91.04
40+
CHF 89.94
50+
CHF 88.85
75+
CHF 87.75
100+
CHF 82.27
200+
CHF 81.17
250+
CHF 80.07
500+
CHF 78.97
1000+
CHF 76.78
Share this product
Description
Description
|
RHP SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a sealed full width bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Style:
- SF
- Bolt Hole Centres:
- 129.997mm = 5.118 inch
Technical
Technical
| Bore | 2-3/16 inch |
|---|---|
| L | 6.374 inch |
| H | 5000 inch |
| J | 5.118 inch |
| G | 0.625 inch |
| A | 1.72 |
| A1 | 2.532 inch |
| A4 | 0.689 inch |
| B | 2.187 |
| s | 0.877 inch |
| d1 | 2.709 inch |
| Dynamic load Cr | 43500 N |
| Static Load Cor | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-2-3/16G+insonly">1055-2-3/16G Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
