SKU: SF20-RHP

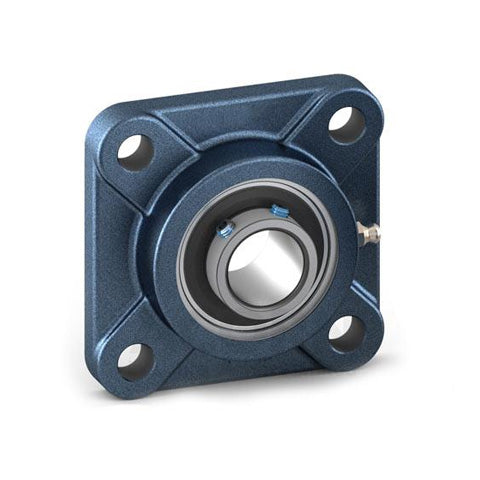

RHP SF20 Four Bolt Square Cast Iron Flange Housing and 20mm Bore Grub Screw Full Width Insert
RHP SF20 Four Bolt Square Cast Iron Flange Housing and 20mm Bore Grub Screw Full Width Insert
Regular price
CHF 35.00
ex VAT
Regular price
Sale price
CHF 35.00
ex VAT
In stock
Price Break
10+
CHF 27.89
20+
CHF 26.33
30+
CHF 26.01
40+
CHF 25.70
50+
CHF 25.39
75+
CHF 25.07
100+
CHF 23.51
200+
CHF 23.19
250+
CHF 22.88
500+
CHF 22.57
1000+
CHF 21.94
Share this product
Description
Description
|
RHP SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a sealed full width bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 20mm
- Style:
- SF
- Bolt Hole Centres:
- 63.5mm
Technical
Technical
| Bore | 20mm |
|---|---|
| L | 85.7mm |
| H | 60.3mm |
| J | 63.5mm |
| G | 10mm |
| A | 27.8 |
| A1 | 37.26mm |
| A4 | 11.1mm |
| B | 30.96 |
| s | 12.75mm |
| d1 | 28.5mm |
| Dynamic load Cr | 12800 N |
| Static Load Cor | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1020-20G+insonly">1020-20G Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
