SKU: SF40A-RHP
RHP SF40A Four Bolt Square Cast Iron Flange Housing and 40mm Bore Grub Screw Flat Back Insert
RHP SF40A Four Bolt Square Cast Iron Flange Housing and 40mm Bore Grub Screw Flat Back Insert
Regular price
CHF 68.00
ex VAT
Regular price
Sale price
CHF 68.00
ex VAT
In stock
Price Break
10+
CHF 53.55
20+
CHF 50.54
30+
CHF 49.94
40+
CHF 49.34
50+
CHF 48.74
75+
CHF 48.14
100+
CHF 45.13
200+
CHF 44.53
250+
CHF 43.92
500+
CHF 43.32
1000+
CHF 42.12
Share this product
Description
Description
|
RHP SF A Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a flat back sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 40mm
- Style:
- SF
- Bolt Hole Centres:
- 101.5mm

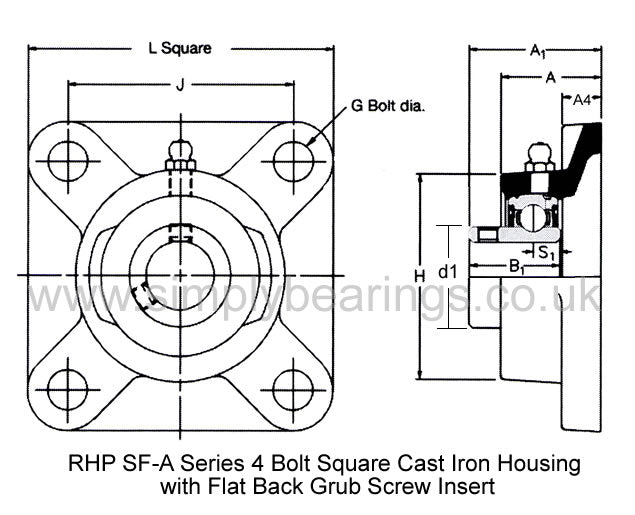

Technical
Technical
| Bore | 40mm |
|---|---|
| L | 130.2mm |
| H | 101.6mm |
| J | 101.5mm |
| G | 12mm |
| A | 34.9 |
| A1 | 54.18mm |
| A4 | 12.7mm |
| B1 | 41.18mm |
| s1 | 11.05mm |
| d1 | 52.7mm |
| Dynamic load Cr | 32500 N |
| Static Load Cor | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 2.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1240-40AG+insonly">1240-40AG Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
