SKU: SF70DEC-RHP
RHP SF70DEC Four Bolt Square Cast Iron Flange Housing and 70mm Bore Eccentric Collar Full Width Insert
RHP SF70DEC Four Bolt Square Cast Iron Flange Housing and 70mm Bore Eccentric Collar Full Width Insert
Regular price
CHF 267.00
ex VAT
Regular price
Sale price
CHF 267.00
ex VAT
In stock
Price Break
10+
CHF 212.63
20+
CHF 200.69
30+
CHF 198.30
40+
CHF 195.91
50+
CHF 193.52
75+
CHF 191.13
100+
CHF 179.19
200+
CHF 176.80
250+
CHF 174.41
500+
CHF 172.02
1000+
CHF 167.24
Share this product
Description
Description
|
RHP SF DEC Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 70mm
- Style:
- SF
- Bolt Hole Centres:
- 5.875mm

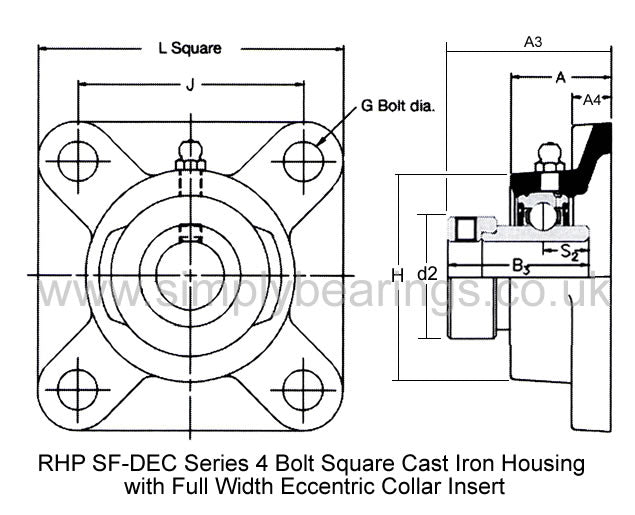

Technical
Technical
| Bore | 70mm |
|---|---|
| L | 7.382mm |
| H | 6.122mm |
| J | 5.875mm |
| G | 0.625mm |
| A | 1.874mm |
| A3 | 3.341mm |
| A4 | 0.709mm |
| B3 | 3.361mm |
| s2 | 1.346mm |
| d2 | 3.812mm |
| Dynamic load Cr | 61000 N |
| Static Load Cor | 45000 N |
| Rec max speed | 2450 rpm |
| Weight | 6.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1070-70DECG+insonly">1070-70DECG Click Here</a> |
| Casting group | 11 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
