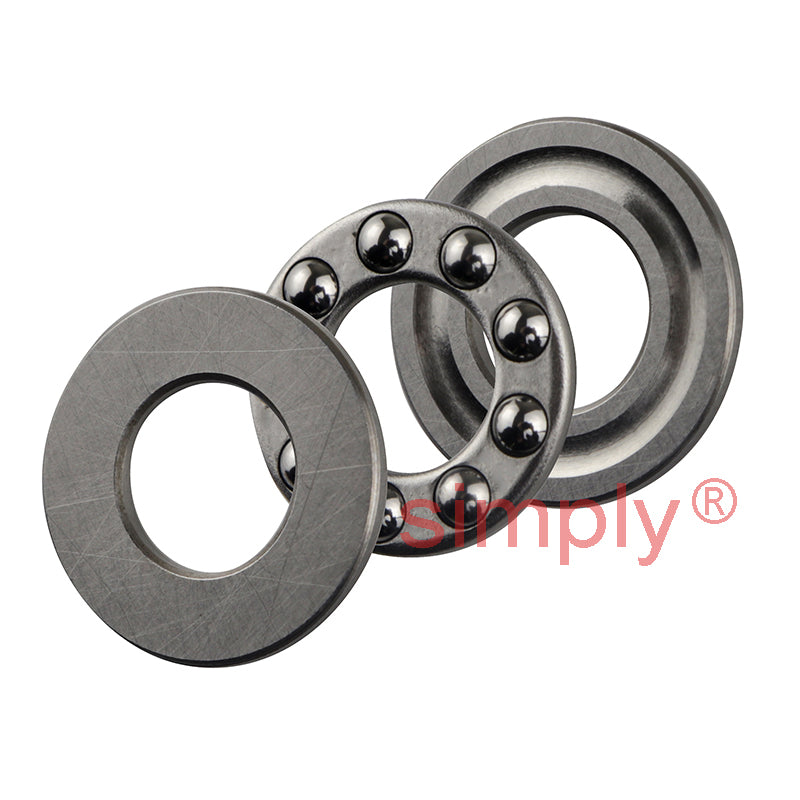

SF8-16M Budget Stainless Steel Single Thrust Ball Bearing with Grooved Washers 8x16x5mm
SF8-16M Budget Stainless Steel Single Thrust Ball Bearing with Grooved Washers 8x16x5mm
Regular price
CHF 7.00
ex VAT
Regular price
Sale price
CHF 7.00
ex VAT
In stock
Price Break
10+
CHF 5.32
19+
CHF 5.02
29+
CHF 4.96
39+
CHF 4.90
49+
CHF 4.84
74+
CHF 4.78
99+
CHF 4.48
199+
CHF 4.42
249+
CHF 4.36
499+
CHF 4.30
999+
CHF 4.18
Description
Description
Stainless Steel Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have angular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 16mm
- Width:
- 5mm
Technical
Technical
| d | 8mm (+0/-0.05mm) |
|---|---|
| D | 16mm (+0.005/-0.020mm) |
| H | 5mm (+0/-0.075mm) |
| d1 | 8.2mm (+0/-0.011mm) |
| D1 | 15.8mm (+0/-0.008mm) |
| r1r2 min | 0.3mm |
| Dynamic load C | 3.844 kN |
| Static load Co | 4.894 kN |
| Limiting speed | 16000 rpm |
| Weight | 0.004 kg |
| Material | Balls & Washers, Chrome Steel, Brass or 304 Stainless Steel Cage |
