SKU: SFT1.1/2-RHP

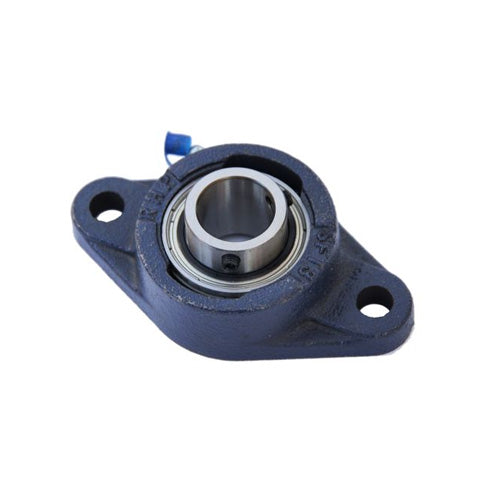

RHP SFT1-1/2 Two Bolt Oval Cast Iron Flange Housing 1-1/2 inch Bore Insert
RHP SFT1-1/2 Two Bolt Oval Cast Iron Flange Housing 1-1/2 inch Bore Insert
Regular price
CHF 70.94
ex VAT
Regular price
Sale price
CHF 70.94
ex VAT
In stock
Price Break
10+
CHF 63.14
19+
CHF 59.59
29+
CHF 58.88
39+
CHF 58.17
49+
CHF 57.46
74+
CHF 56.75
99+
CHF 53.21
199+
CHF 52.50
249+
CHF 51.79
499+
CHF 51.08
999+
CHF 49.66
Couldn't load pickup availability
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- SFT
- Bolt Hole Centres:
- 143.51mm = 5.65 inch
Technical
Technical
| Bore | 1-1/2 inch |
|---|---|
| L | 4 inch |
| H | 6.748 inch |
| J | 5.65 inch |
| G | 0.5 inch |
| A | 1.374 inch |
| A1 | 2.133 inch |
| A4 | 0.5 inch |
| B | 1.938 inch |
| s | 0.752 inch |
| d1 | 2.075 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 1.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040-1-1/2G+insonly">1040-1-1/2G Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
