SKU: SFT1.1/4R-RHP

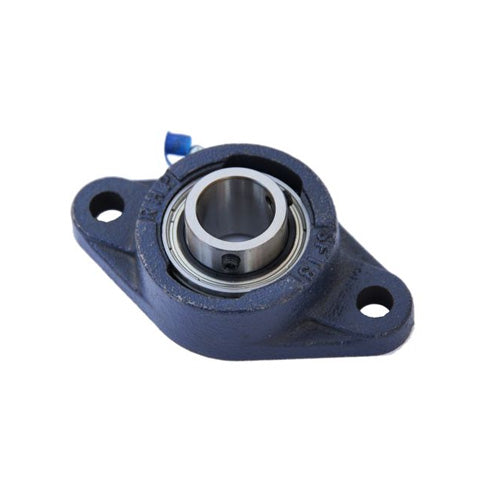

RHP SFT1-1/4R Two Bolt Oval Cast Iron Flange Housing 1-1/4 inch Bore Insert
RHP SFT1-1/4R Two Bolt Oval Cast Iron Flange Housing 1-1/4 inch Bore Insert
Regular price
CHF 54.18
ex VAT
Regular price
Sale price
CHF 54.18
ex VAT
In stock
Price Break
10+
CHF 48.22
19+
CHF 45.51
29+
CHF 44.97
39+
CHF 44.43
49+
CHF 43.89
74+
CHF 43.34
99+
CHF 40.64
199+
CHF 40.09
249+
CHF 39.55
499+
CHF 39.01
999+
CHF 37.93
Couldn't load pickup availability
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- SFT
- Bolt Hole Centres:
- 116.51mm = 4.587 inch
Technical
Technical
| Bore | 1-1/4 inch |
|---|---|
| L | 3.252 inch |
| H | 5.563 inch |
| J | 4.587 inch |
| G | 0.4375 inch |
| A | 1.173 inch |
| A1 | 1.662 inch |
| A4 | 0.5 inch |
| B | 1.5 inch |
| s | 0.627 inch |
| d1 | 1.575 inch |
| Dynamic load Cr | 19500 N |
| Static load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030-1-1/4G+insonly">1030-1-1/4G Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
