SKU: SFT12-RHP

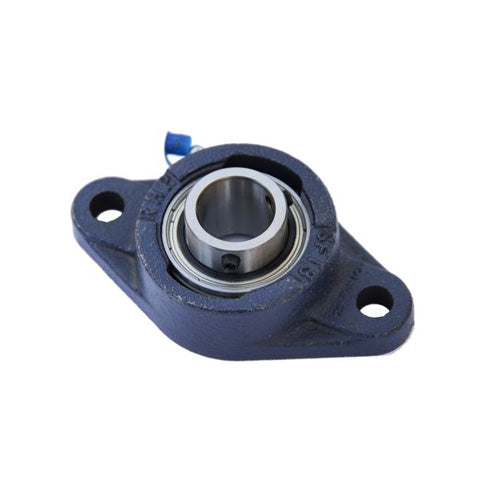

RHP SFT12 Two Bolt Oval Cast Iron Flange Housing 12mm Bore Insert
RHP SFT12 Two Bolt Oval Cast Iron Flange Housing 12mm Bore Insert
Regular price
CHF 24.00
ex VAT
Regular price
Sale price
CHF 24.00
ex VAT
In stock
Price Break
10+
CHF 18.80
20+
CHF 17.74
30+
CHF 17.53
40+
CHF 17.32
50+
CHF 17.11
75+
CHF 16.90
100+
CHF 15.84
200+
CHF 15.63
250+
CHF 15.42
500+
CHF 15.21
1000+
CHF 14.78
Share this product
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 12mm
- Style:
- SFT
- Bolt Hole Centres:
- 76.5mm
Technical
Technical
| Bore | 12mm |
|---|---|
| L | 52.5mm |
| H | 98.5mm |
| J | 76.5mm |
| G | 10mm |
| A | 24.6mm |
| A1 | 32.87mm |
| A4 | 9.5mm |
| B | 27.38mm |
| s | 11.55mm |
| d1 | 24.21mm |
| Dynamic load Cr | 9550 N |
| Static load Cor | 4800 N |
| Rec max speed | 7000 rpm |
| Weight | 0.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1017-12G+insonly">1017-12G Click Here</a> |
| Casting group | SFT1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
