SKU: SFT16-RHP

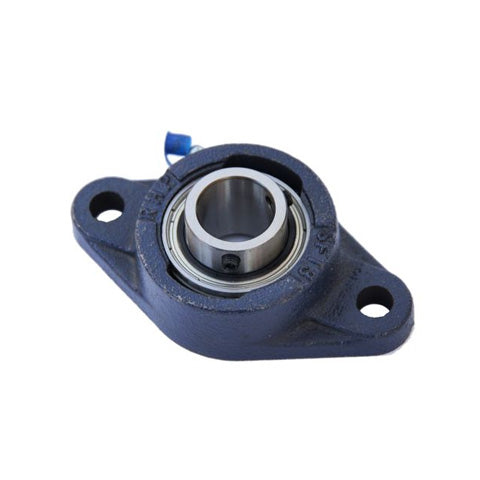

RHP SFT16 Two Bolt Oval Cast Iron Flange Housing 16mm Bore Insert
RHP SFT16 Two Bolt Oval Cast Iron Flange Housing 16mm Bore Insert
Regular price
CHF 37.00
ex VAT
Regular price
Sale price
CHF 37.00
ex VAT
In stock
Price Break
10+
CHF 28.72
20+
CHF 27.10
30+
CHF 26.78
40+
CHF 26.46
50+
CHF 26.14
75+
CHF 25.81
100+
CHF 24.20
200+
CHF 23.88
250+
CHF 23.55
500+
CHF 23.23
1000+
CHF 22.59
Share this product
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 16mm
- Style:
- SFT
- Bolt Hole Centres:
- 76.5mm
Technical
Technical
| Bore | 16mm |
|---|---|
| L | 52.5mm |
| H | 98.5mm |
| J | 76.5mm |
| G | 10mm |
| A | 24.6mm |
| A1 | 32.87mm |
| A4 | 9.5mm |
| B | 27.38mm |
| s | 11.55mm |
| d1 | 24.21mm |
| Dynamic load Cr | 9550 N |
| Static load Cor | 4800 N |
| Rec max speed | 7000 rpm |
| Weight | 0.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1017-16G+insonly">1017-16G Click Here</a> |
| Casting group | SFT1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
