SKU: SFT1EC-RHP
RHP SFT1EC Two Bolt Oval Cast Iron Flange Housing 1 inch Bore Insert
RHP SFT1EC Two Bolt Oval Cast Iron Flange Housing 1 inch Bore Insert
Regular price
CHF 46.97
ex VAT
Regular price
Sale price
CHF 46.97
ex VAT
In stock
Price Break
10+
CHF 41.80
19+
CHF 39.45
29+
CHF 38.99
39+
CHF 38.52
49+
CHF 38.05
74+
CHF 37.58
99+
CHF 35.23
199+
CHF 34.76
249+
CHF 34.29
499+
CHF 33.82
999+
CHF 32.88
Couldn't load pickup availability
Description
Description
|
RHP SFT EC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- SFT
- Bolt Hole Centres:
- 99.01mm = 3.898 inch

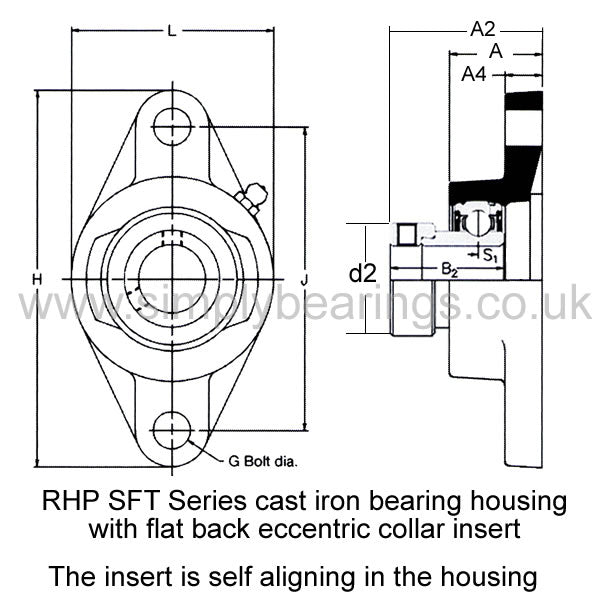

Technical
Technical
| Bore | 1 inch |
|---|---|
| L | 2.689 inch |
| H | 4.874 inch |
| J | 3.898 inch |
| G | 0.4375 inch |
| A | 1.126 inch |
| A2 | 1.67 inch |
| A4 | 0.437 inch |
| B2 | 1.217 inch |
| s1 | 0.298 inch |
| d2 | 1.5 inch |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1225-1ECG+insonly">1225-1ECG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
