SKU: SFT2.7/16DEC-RHP

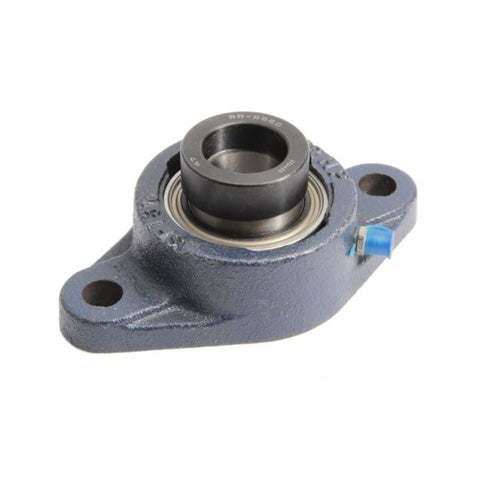

RHP SFT2-7/16DEC Two Bolt Oval Cast Iron Flange Housing 2-7/16 inch Bore Insert
RHP SFT2-7/16DEC Two Bolt Oval Cast Iron Flange Housing 2-7/16 inch Bore Insert
Regular price
CHF 189.61
ex VAT
Regular price
Sale price
CHF 189.61
ex VAT
In stock
Price Break
10+
CHF 168.75
19+
CHF 159.27
29+
CHF 157.38
39+
CHF 155.48
49+
CHF 153.58
74+
CHF 151.69
99+
CHF 142.21
199+
CHF 140.31
249+
CHF 138.42
499+
CHF 136.52
999+
CHF 132.73
Couldn't load pickup availability
Description
Description
|
RHP SFT DEC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Style:
- SFT
- Bolt Hole Centres:
- 202.01mm = 7.953 (7-61/64) inch
Technical
Technical
| Bore | 2-7/16 inch |
|---|---|
| L | 5.437 inch |
| H | 9.252 inch |
| J | 7.953 inch |
| G | 0.625 inch |
| A | 1.874 inch |
| A3 | 3.18 inch |
| A4 | 0.689 inch |
| B3 | 3.064 inch |
| s2 | 1.221 inch |
| d2 | 3.312 inch |
| Dynamic load Cr | 48000 N |
| Static load Cor | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 4.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-2-7/16DECG+insonly">1060-2-7/16DECG Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
