SKU: SFT20-RHP

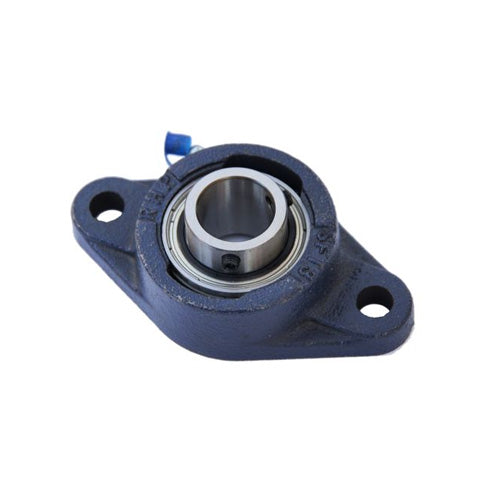

RHP SFT20 Two Bolt Oval Cast Iron Flange Housing 20mm Bore Insert
RHP SFT20 Two Bolt Oval Cast Iron Flange Housing 20mm Bore Insert
Regular price
CHF 35.16
ex VAT
Regular price
Sale price
CHF 35.16
ex VAT
In stock
Price Break
10+
CHF 31.29
19+
CHF 29.53
29+
CHF 29.18
39+
CHF 28.83
49+
CHF 28.48
74+
CHF 28.13
99+
CHF 26.37
199+
CHF 26.02
249+
CHF 25.67
499+
CHF 25.32
999+
CHF 24.61
Couldn't load pickup availability
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 20mm
- Style:
- SFT
- Bolt Hole Centres:
- 90mm
Technical
Technical
| Bore | 20mm |
|---|---|
| L | 60.3mm |
| H | 111.9mm |
| J | 90mm |
| G | 10mm |
| A | 27.8mm |
| A1 | 37.26mm |
| A4 | 11.1mm |
| B | 30.96mm |
| s | 12.75mm |
| d1 | 28.5mm |
| Dynamic load Cr | 12800 N |
| Static load Cor | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1020-20G+insonly">1020-20G Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
