SKU: SFT25-RHP

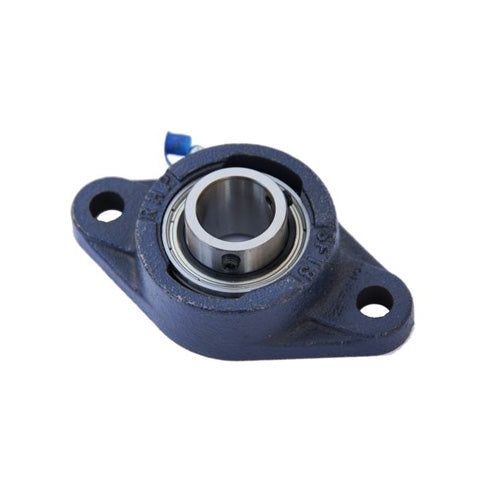

RHP SFT25 Two Bolt Oval Cast Iron Flange Housing 25mm Bore Insert
RHP SFT25 Two Bolt Oval Cast Iron Flange Housing 25mm Bore Insert
Regular price
CHF 43.00
ex VAT
Regular price
Sale price
CHF 43.00
ex VAT
In stock
Price Break
10+
CHF 33.52
20+
CHF 31.64
30+
CHF 31.26
40+
CHF 30.89
50+
CHF 30.51
75+
CHF 30.13
100+
CHF 28.25
200+
CHF 27.87
250+
CHF 27.50
500+
CHF 27.12
1000+
CHF 26.37
Share this product
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Style:
- SFT
- Bolt Hole Centres:
- 99mm
Technical
Technical
| Bore | 25mm |
|---|---|
| L | 68.3mm |
| H | 123.8mm |
| J | 99mm |
| G | 10mm |
| A | 28.6mm |
| A1 | 38.84mm |
| A4 | 11.1mm |
| B | 34.11mm |
| s | 14.32mm |
| d1 | 34.01mm |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1025-25G+insonly">1025-25G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
