SKU: SFT25A-RHP

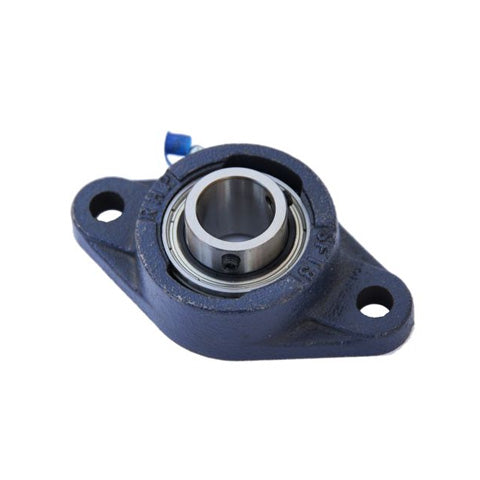

RHP SFT25A Two Bolt Oval Cast Iron Flange Housing 25mm Bore Insert
RHP SFT25A Two Bolt Oval Cast Iron Flange Housing 25mm Bore Insert
Regular price
CHF 43.51
ex VAT
Regular price
Sale price
CHF 43.51
ex VAT
In stock
Price Break
10+
CHF 38.72
19+
CHF 36.55
29+
CHF 36.11
39+
CHF 35.68
49+
CHF 35.24
74+
CHF 34.81
99+
CHF 32.63
199+
CHF 32.20
249+
CHF 31.76
499+
CHF 31.33
999+
CHF 30.46
Couldn't load pickup availability
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a flat back sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Style:
- SFT
- Bolt Hole Centres:
- 99mm
Technical
Technical
| Bore | 25mm |
|---|---|
| L | 68.3mm |
| H | 123.8mm |
| J | 99mm |
| G | 10mm |
| A | 28.6mm |
| A1 | 38.84mm |
| A4 | 11.1mm |
| B1 | 27.35mm |
| s1 | 7.56mm |
| d1 | 34.01mm |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1225-25AG+insonly">1225-25AG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
