SKU: SFT25DEC-RHP

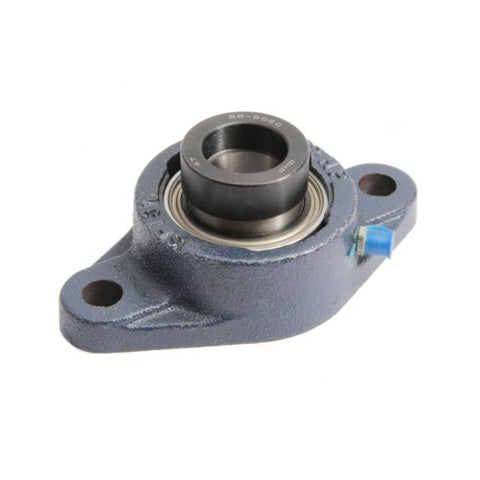

RHP SFT25DEC Two Bolt Oval Cast Iron Flange Housing 25mm Bore Insert
RHP SFT25DEC Two Bolt Oval Cast Iron Flange Housing 25mm Bore Insert
Regular price
CHF 50.00
ex VAT
Regular price
Sale price
CHF 50.00
ex VAT
In stock
Price Break
10+
CHF 39.65
20+
CHF 37.42
30+
CHF 36.97
40+
CHF 36.53
50+
CHF 36.08
75+
CHF 35.64
100+
CHF 33.41
200+
CHF 32.97
250+
CHF 32.52
500+
CHF 32.07
1000+
CHF 31.18
Share this product
Description
Description
|
RHP SFT DEC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Style:
- SFT
- Bolt Hole Centres:
- 99mm
Technical
Technical
| Bore | 25mm |
|---|---|
| L | 68.3mm |
| H | 123.8mm |
| J | 99mm |
| G | 10mm |
| A | 28.6mm |
| A3 | 45.95mm |
| A4 | 11.1mm |
| B3 | 44.4mm |
| s2 | 17.49mm |
| d2 | 38.1mm |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1025-25DECG+insonly">1025-25DECG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
