SKU: SFT30-RHP

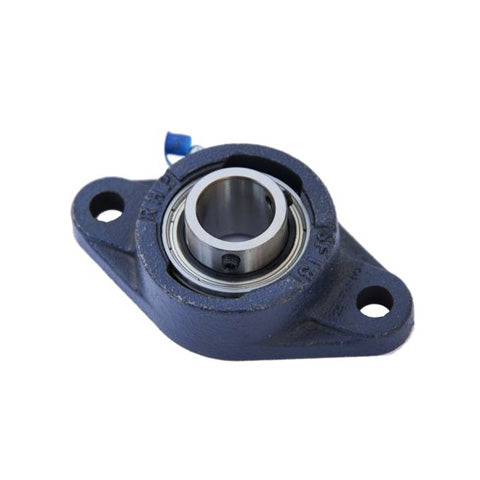

RHP SFT30 Two Bolt Oval Cast Iron Flange Housing 30mm Bore Insert
RHP SFT30 Two Bolt Oval Cast Iron Flange Housing 30mm Bore Insert
Regular price
CHF 49.58
ex VAT
Regular price
Sale price
CHF 49.58
ex VAT
In stock
Price Break
10+
CHF 44.13
19+
CHF 41.65
29+
CHF 41.15
39+
CHF 40.66
49+
CHF 40.16
74+
CHF 39.66
99+
CHF 37.19
199+
CHF 36.69
249+
CHF 36.19
499+
CHF 35.70
999+
CHF 34.71
Couldn't load pickup availability
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30mm
- Style:
- SFT
- Bolt Hole Centres:
- 116.5mm
Technical
Technical
| Bore | 30mm |
|---|---|
| L | 82.6mm |
| H | 141.3mm |
| J | 116.5mm |
| G | 10mm |
| A | 29.8mm |
| A1 | 42.21mm |
| A4 | 12.7mm |
| B | 38.1mm |
| s | 15.93mm |
| d1 | 40mm |
| Dynamic load Cr | 19500 N |
| Static load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030-30G+insonly">1030-30G Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
