SKU: SFT30A-RHP

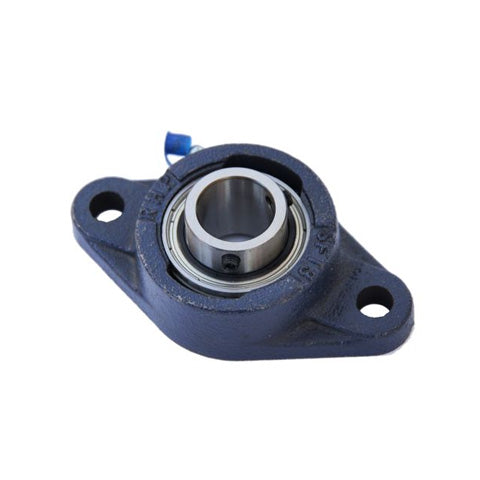

RHP SFT30A Two Bolt Oval Cast Iron Flange Housing 30mm Bore Insert
RHP SFT30A Two Bolt Oval Cast Iron Flange Housing 30mm Bore Insert
Regular price
CHF 51.07
ex VAT
Regular price
Sale price
CHF 51.07
ex VAT
In stock
Price Break
10+
CHF 45.45
19+
CHF 42.90
29+
CHF 42.39
39+
CHF 41.88
49+
CHF 41.37
74+
CHF 40.86
99+
CHF 38.30
199+
CHF 37.79
249+
CHF 37.28
499+
CHF 36.77
999+
CHF 35.75
Couldn't load pickup availability
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a flat back sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30mm
- Style:
- SFT
- Bolt Hole Centres:
- 116.5mm
Technical
Technical
| Bore | 30mm |
|---|---|
| L | 82.6mm |
| H | 141.3mm |
| J | 116.5mm |
| G | 10mm |
| A | 29.8mm |
| A1 | 42.21mm |
| A4 | 12.7mm |
| B1 | 31.21mm |
| s1 | 9.04mm |
| d1 | 40mm |
| Dynamic load Cr | 19500 N |
| Static load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1230-30AG+insonly">1230-30AG Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
