SKU: SFT35-RHP

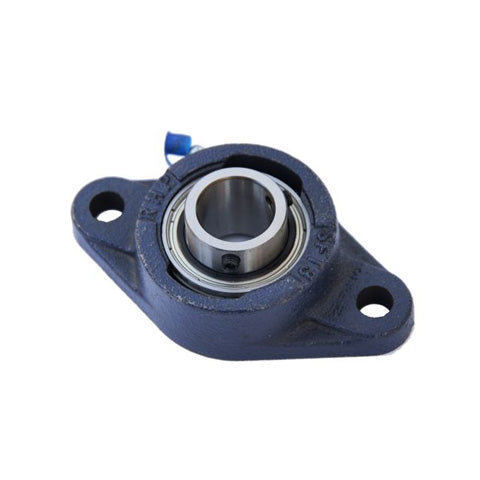

RHP SFT35 Two Bolt Oval Cast Iron Flange Housing 35mm Bore Insert
RHP SFT35 Two Bolt Oval Cast Iron Flange Housing 35mm Bore Insert
Regular price
CHF 57.71
ex VAT
Regular price
Sale price
CHF 57.71
ex VAT
In stock
Price Break
10+
CHF 51.36
19+
CHF 48.48
29+
CHF 47.90
39+
CHF 47.32
49+
CHF 46.75
74+
CHF 46.17
99+
CHF 43.28
199+
CHF 42.71
249+
CHF 42.13
499+
CHF 41.55
999+
CHF 40.40
Couldn't load pickup availability
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 35mm
- Style:
- SFT
- Bolt Hole Centres:
- 130mm
Technical
Technical
| Bore | 35mm |
|---|---|
| L | 95.5mm |
| H | 155.5mm |
| J | 130mm |
| G | 12mm |
| A | 31.4mm |
| A1 | 46.41mm |
| A4 | 12.7mm |
| B | 42.88mm |
| s | 17.53mm |
| d1 | 46.69mm |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-35G+insonly">1035-35G Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
