SKU: SFT35DEC-RHP

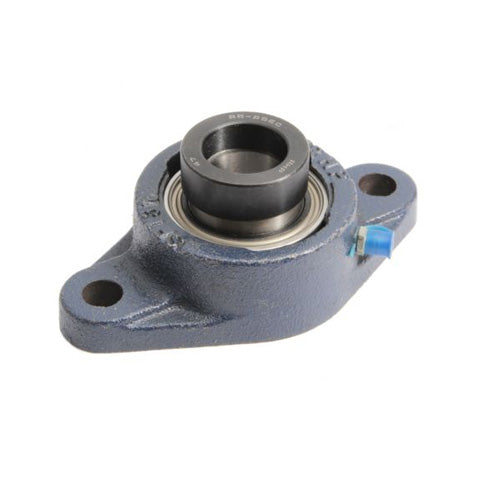

RHP SFT35DEC Two Bolt Oval Cast Iron Flange Housing 35mm Bore Insert
RHP SFT35DEC Two Bolt Oval Cast Iron Flange Housing 35mm Bore Insert
Regular price
CHF 70.00
ex VAT
Regular price
Sale price
CHF 70.00
ex VAT
In stock
Price Break
10+
CHF 55.67
20+
CHF 52.54
30+
CHF 51.92
40+
CHF 51.29
50+
CHF 50.67
75+
CHF 50.04
100+
CHF 46.91
200+
CHF 46.29
250+
CHF 45.66
500+
CHF 45.04
1000+
CHF 43.79
Share this product
Description
Description
|
RHP SFT DEC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 35mm
- Style:
- SFT
- Bolt Hole Centres:
- 130mm
Technical
Technical
| Bore | 35mm |
|---|---|
| L | 95.5mm |
| H | 155.5mm |
| J | 130mm |
| G | 12mm |
| A | 31.4mm |
| A3 | 53.31mm |
| A4 | 12.7mm |
| B3 | 51.18mm |
| s2 | 18.89mm |
| d2 | 55.58mm |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-35DECG+insonly">1035-35DECG Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
