SKU: SFT40-RHP

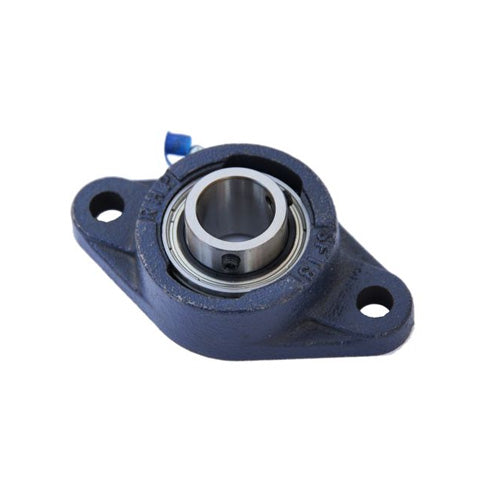

RHP SFT40 Two Bolt Oval Cast Iron Flange Housing 40mm Bore Insert
RHP SFT40 Two Bolt Oval Cast Iron Flange Housing 40mm Bore Insert
Regular price
CHF 62.00
ex VAT
Regular price
Sale price
CHF 62.00
ex VAT
In stock
Price Break
10+
CHF 49.26
20+
CHF 46.49
30+
CHF 45.94
40+
CHF 45.39
50+
CHF 44.83
75+
CHF 44.28
100+
CHF 41.51
200+
CHF 40.96
250+
CHF 40.41
500+
CHF 39.85
1000+
CHF 38.75
Share this product
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 40mm
- Style:
- SFT
- Bolt Hole Centres:
- 143.5mm
Technical
Technical
| Bore | 40mm |
|---|---|
| L | 101.6mm |
| H | 171.4mm |
| J | 143.5mm |
| G | 12mm |
| A | 34.9mm |
| A1 | 54.18mm |
| A4 | 12.7mm |
| B | 49.23mm |
| s | 19.1mm |
| d1 | 52.7mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 1.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040-40G+insonly">1040-40G Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
