SKU: SFT45-RHP

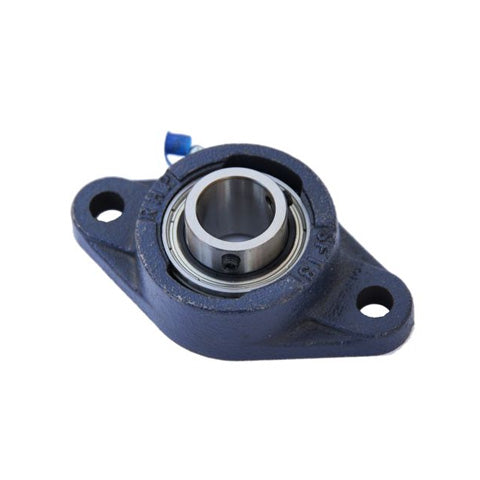

RHP SFT45 Two Bolt Oval Cast Iron Flange Housing 45mm Bore Insert
RHP SFT45 Two Bolt Oval Cast Iron Flange Housing 45mm Bore Insert
Regular price
CHF 75.12
ex VAT
Regular price
Sale price
CHF 75.12
ex VAT
In stock
Price Break
10+
CHF 66.86
19+
CHF 63.10
29+
CHF 62.35
39+
CHF 61.60
49+
CHF 60.85
74+
CHF 60.10
99+
CHF 56.34
199+
CHF 55.59
249+
CHF 54.84
499+
CHF 54.09
999+
CHF 52.58
Couldn't load pickup availability
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Style:
- SFT
- Bolt Hole Centres:
- 148.5mm
Technical
Technical
| Bore | 45mm |
|---|---|
| L | 111.1mm |
| H | 179.4mm |
| J | 148.5mm |
| G | 16mm |
| A | 35.3mm |
| A1 | 54.18mm |
| A4 | 14.3mm |
| B | 49.23mm |
| s | 19.1mm |
| d1 | 57.3mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1045-45G+insonly">1045-45G Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
