SKU: SFT45DEC-RHP

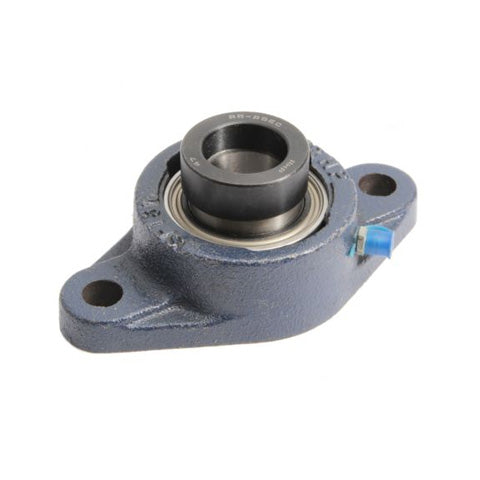

RHP SFT45DEC Two Bolt Oval Cast Iron Flange Housing 45mm Bore Insert
RHP SFT45DEC Two Bolt Oval Cast Iron Flange Housing 45mm Bore Insert
Regular price
CHF 97.00
ex VAT
Regular price
Sale price
CHF 97.00
ex VAT
In stock
Price Break
10+
CHF 76.60
20+
CHF 72.30
30+
CHF 71.44
40+
CHF 70.58
50+
CHF 69.72
75+
CHF 68.86
100+
CHF 64.55
200+
CHF 63.69
250+
CHF 62.83
500+
CHF 61.97
1000+
CHF 60.25
Share this product
Description
Description
|
RHP SFT DEC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Style:
- SFT
- Bolt Hole Centres:
- 148.5mm
Technical
Technical
| Bore | 45mm |
|---|---|
| L | 111.1mm |
| H | 179.4mm |
| J | 148.5mm |
| G | 16mm |
| A | 35.3mm |
| A3 | 58.9mm |
| A4 | 14.3mm |
| B3 | 56.34mm |
| s2 | 21.46mm |
| d2 | 63.5mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1045-45DECG+insonly">1045-45DECG Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
