RHP SFT50DEC Two Bolt Oval Cast Iron Flange Housing 50mm Bore Insert
RHP SFT50DEC Two Bolt Oval Cast Iron Flange Housing 50mm Bore Insert
Regular price
CHF 107.00
ex VAT
Regular price
Sale price
CHF 107.00
ex VAT
In stock
Price Break
10+
CHF 85.25
20+
CHF 80.46
30+
CHF 79.50
40+
CHF 78.55
50+
CHF 77.59
75+
CHF 76.63
100+
CHF 71.84
200+
CHF 70.88
250+
CHF 69.93
500+
CHF 68.97
1000+
CHF 67.05
Share this product
Description
Description
|
RHP SFT DEC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50mm
- Style:
- SFT
- Bolt Hole Centres:
- 157mm
Technical
Technical

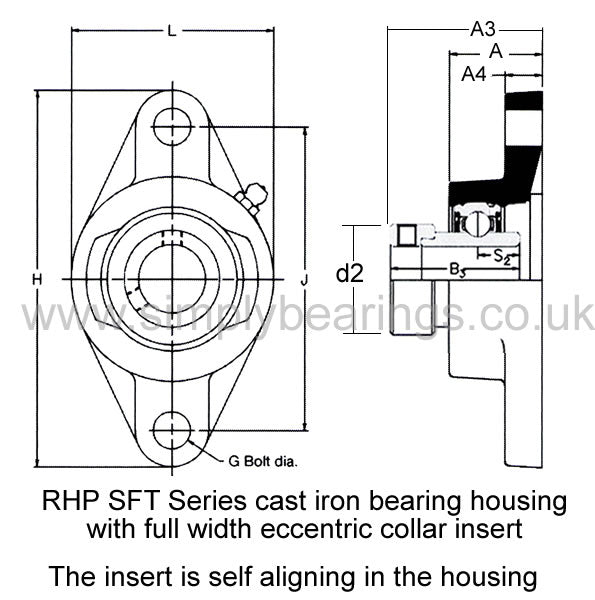

| Bore | 50mm |
|---|---|
| L | 115.9mm |
| H | 188.9mm |
| J | 157mm |
| G | 16mm |
| A | 39.7mm |
| A3 | 66.07mm |
| A4 | 14.3mm |
| B3 | 62.7mm |
| s2 | 24.65mm |
| d2 | 69.85mm |
| Dynamic load Cr | 35000 N |
| Static load Cor | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050-50DECG+insonly">1050-50DECG Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
