SKU: SFT55-RHP

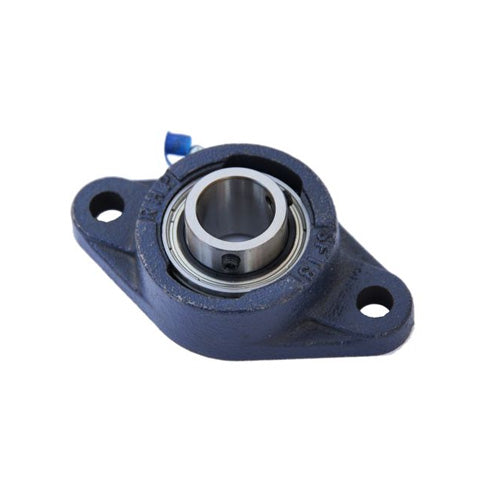

RHP SFT55 Two Bolt Oval Cast Iron Flange Housing 55mm Bore Insert
RHP SFT55 Two Bolt Oval Cast Iron Flange Housing 55mm Bore Insert
Regular price
CHF 116.00
ex VAT
Regular price
Sale price
CHF 116.00
ex VAT
In stock
Price Break
10+
CHF 92.03
20+
CHF 86.86
30+
CHF 85.83
40+
CHF 84.79
50+
CHF 83.76
75+
CHF 82.72
100+
CHF 77.55
200+
CHF 76.52
250+
CHF 75.49
500+
CHF 74.45
1000+
CHF 72.38
Share this product
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 55mm
- Style:
- SFT
- Bolt Hole Centres:
- 184mm
Technical
Technical
| Bore | 55mm |
|---|---|
| L | 127mm |
| H | 215.9mm |
| J | 184mm |
| G | 16mm |
| A | 43.7mm |
| A1 | 64.31mm |
| A4 | 17.5mm |
| B | 55.55mm |
| s | 22.28mm |
| d1 | 68.81mm |
| Dynamic load Cr | 43500 N |
| Static load Cor | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 3.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-55G+insonly">1055-55G Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
