SKU: SFT55DEC-RHP

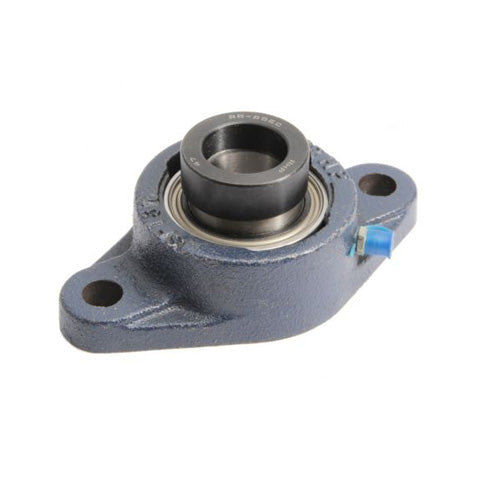

RHP SFT55DEC Two Bolt Oval Cast Iron Flange Housing 55mm Bore Insert
RHP SFT55DEC Two Bolt Oval Cast Iron Flange Housing 55mm Bore Insert
Regular price
CHF 142.00
ex VAT
Regular price
Sale price
CHF 142.00
ex VAT
In stock
Price Break
10+
CHF 112.84
20+
CHF 106.50
30+
CHF 105.23
40+
CHF 103.97
50+
CHF 102.70
75+
CHF 101.43
100+
CHF 95.09
200+
CHF 93.82
250+
CHF 92.55
500+
CHF 91.29
1000+
CHF 88.75
Share this product
Description
Description
|
RHP SFT DEC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 55mm
- Style:
- SFT
- Bolt Hole Centres:
- 184mm
Technical
Technical
| Bore | 55mm |
|---|---|
| L | 127mm |
| H | 215.9mm |
| J | 184mm |
| G | 16mm |
| A | 43.7mm |
| A3 | 74.57mm |
| A4 | 17.5mm |
| B3 | 71.44mm |
| s2 | 27.82mm |
| d2 | 76.2mm |
| Dynamic load Cr | 43500 N |
| Static load Cor | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 3.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-55DECG+insonly">1055-55DECG Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
