SKU: SFT60DEC-RHP

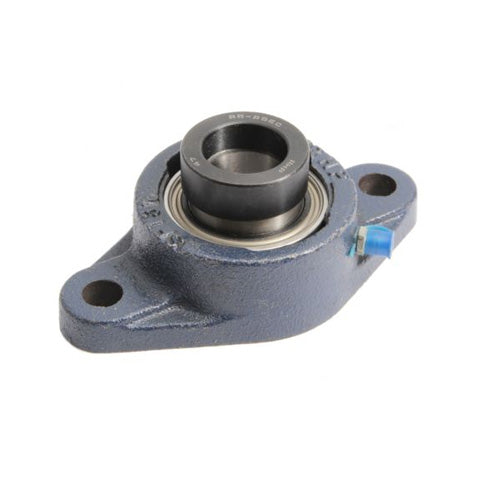

RHP SFT60DEC Two Bolt Oval Cast Iron Flange Housing 60mm Bore Insert
RHP SFT60DEC Two Bolt Oval Cast Iron Flange Housing 60mm Bore Insert
Regular price
CHF 179.00
ex VAT
Regular price
Sale price
CHF 179.00
ex VAT
In stock
Price Break
10+
CHF 141.82
20+
CHF 133.85
30+
CHF 132.26
40+
CHF 130.66
50+
CHF 129.07
75+
CHF 127.48
100+
CHF 119.51
200+
CHF 117.91
250+
CHF 116.32
500+
CHF 114.73
1000+
CHF 111.54
Share this product
Description
Description
|
RHP SFT DEC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 60mm
- Style:
- SFT
- Bolt Hole Centres:
- 202mm
Technical
Technical
| Bore | 60mm |
|---|---|
| L | 138.1mm |
| H | 235mm |
| J | 202mm |
| G | 16mm |
| A | 47.6mm |
| A3 | 80.77mm |
| A4 | 17.5mm |
| B3 | 77.82mm |
| s2 | 31.02mm |
| d2 | 84.12mm |
| Dynamic load Cr | 48000 N |
| Static load Cor | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 4.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-60DECG+insonly">1060-60DECG Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
